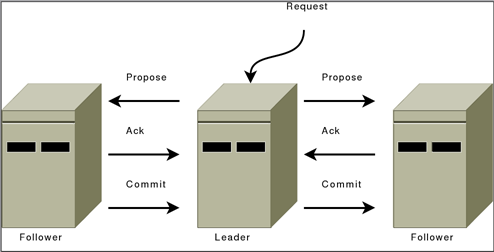

--- a/docs/images/2pc.png
+++ b/docs/images/2pc.png
--- a/docs/index.html
+++ b/docs/index.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

@@ -189,6 +198,15 @@ The following documents provide concepts and procedures to get you started using

				 <li>


				 <a href="zookeeperAdmin.html">Administrator's Guide</a> - a guide for system administrators and anyone else who might deploy Zookeeer</li>





				+<li>


				+<a href="javaExample.html">ZooKeeper Java Example</a> - A simple Zookeeer Client, written in Java</li>


				+


				+<li>


				+<a href="zookeeperTutorial.html">Barrier and Queue Tutorial</a> - Simple Implementations of Barriers and Queues</li>


				+


				+<li>


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a> - Assorted Topics on the Inner Workings of ZooKeeper</li>


				+


				 <li>


				 <a href="api/index.html">API Docs</a> - the technical reference to ZooKeeper APIs</li>




--- a/docs/index.pdf
+++ b/docs/index.pdf
--- a/docs/javaExample.html
+++ b/docs/javaExample.html
@@ -0,0 +1,880 @@

				+<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">


				+<html>


				+<head>


				+<META http-equiv="Content-Type" content="text/html; charset=UTF-8">


				+<meta content="Apache Forrest" name="Generator">


				+<meta name="Forrest-version" content="0.8">


				+<meta name="Forrest-skin-name" content="pelt">


				+<title>ZooKeeper Java Example</title>


				+<link type="text/css" href="skin/basic.css" rel="stylesheet">


				+<link media="screen" type="text/css" href="skin/screen.css" rel="stylesheet">


				+<link media="print" type="text/css" href="skin/print.css" rel="stylesheet">


				+<link type="text/css" href="skin/profile.css" rel="stylesheet">


				+<script src="skin/getBlank.js" language="javascript" type="text/javascript"></script><script src="skin/getMenu.js" language="javascript" type="text/javascript"></script><script src="skin/fontsize.js" language="javascript" type="text/javascript"></script>


				+<link rel="shortcut icon" href="images/favicon.ico">


				+</head>


				+<body onload="init()">


				+<script type="text/javascript">ndeSetTextSize();</script>


				+<div id="top">


				+<!--+


				+    |breadtrail


				+    +-->


				+<div class="breadtrail">


				+<a href="http://www.apache.org/">Apache</a> &gt; <a href="http://hadoop.apache.org/">Hadoop</a> &gt; <a href="http://hadoop.apache.org/zookeeper/">ZooKeeper</a><script src="skin/breadcrumbs.js" language="JavaScript" type="text/javascript"></script>


				+</div>


				+<!--+


				+    |header


				+    +-->


				+<div class="header">


				+<!--+


				+    |start group logo


				+    +-->


				+<div class="grouplogo">


				+<a href="http://hadoop.apache.org/"><img class="logoImage" alt="Hadoop" src="images/hadoop-logo.jpg" title="Apache Hadoop"></a>


				+</div>


				+<!--+


				+    |end group logo


				+    +-->


				+<!--+


				+    |start Project Logo


				+    +-->


				+<div class="projectlogo">


				+<a href="http://hadoop.apache.org/zookeeper/"><img class="logoImage" alt="ZooKeeper" src="images/zookeeper_small.gif" title="The Hadoop database"></a>


				+</div>


				+<!--+


				+    |end Project Logo


				+    +-->


				+<!--+


				+    |start Search


				+    +-->


				+<div class="searchbox">


				+<form action="http://www.google.com/search" method="get" class="roundtopsmall">


				+<input value="hadoop.apache.org" name="sitesearch" type="hidden"><input onFocus="getBlank (this, 'Search the site with google');" size="25" name="q" id="query" type="text" value="Search the site with google">&nbsp;


				+                    <input name="Search" value="Search" type="submit">


				+</form>


				+</div>


				+<!--+


				+    |end search


				+    +-->


				+<!--+


				+    |start Tabs


				+    +-->


				+<ul id="tabs">


				+<li>


				+<a class="unselected" href="http://hadoop.apache.org/zookeeper/">Project</a>


				+</li>


				+<li>


				+<a class="unselected" href="http://wiki.apache.org/hadoop/ZooKeeper">Wiki</a>


				+</li>


				+<li class="current">


				+<a class="selected" href="index.html">ZooKeeper Documentation</a>


				+</li>


				+</ul>


				+<!--+


				+    |end Tabs


				+    +-->


				+</div>


				+</div>


				+<div id="main">


				+<div id="publishedStrip">


				+<!--+


				+    |start Subtabs


				+    +-->


				+<div id="level2tabs"></div>


				+<!--+


				+    |end Endtabs


				+    +-->


				+<script type="text/javascript"><!--


				+document.write("Last Published: " + document.lastModified);


				+//  --></script>


				+</div>


				+<!--+


				+    |breadtrail


				+    +-->


				+<div class="breadtrail">


				+


				+             &nbsp;


				+           </div>


				+<!--+


				+    |start Menu, mainarea


				+    +-->


				+<!--+


				+    |start Menu


				+    +-->


				+<div id="menu">


				+<div onclick="SwitchMenu('menu_selected_1.1', 'skin/')" id="menu_selected_1.1Title" class="menutitle" style="background-image: url('skin/images/chapter_open.gif');">Documentation</div>


				+<div id="menu_selected_1.1" class="selectedmenuitemgroup" style="display: block;">


				+<div class="menuitem">


				+<a href="index.html">Welcome</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperOver.html">Zookeeper Overview</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperStarted.html">Getting Started</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperProgrammers.html">Programmer's Guide</a>


				+</div>


				+<div class="menuitem">


				+<a href="recipes.html">Recipes</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperAdmin.html">Administrator's Guide</a>


				+</div>


				+<div class="menupage">


				+<div class="menupagetitle">Java Example</div>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				+<a href="api/index.html">API Docs</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://wiki.apache.org/hadoop/ZooKeeper">Wiki</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://wiki.apache.org/hadoop/ZooKeeper/FAQ">FAQ</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://hadoop.apache.org/zookeeper/mailing_lists.html">Mailing Lists</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperOtherInfo.html">Other Info</a>


				+</div>


				+</div>


				+<div id="credit"></div>


				+<div id="roundbottom">


				+<img style="display: none" class="corner" height="15" width="15" alt="" src="skin/images/rc-b-l-15-1body-2menu-3menu.png"></div>


				+<!--+


				+  |alternative credits


				+  +-->


				+<div id="credit2"></div>


				+</div>


				+<!--+


				+    |end Menu


				+    +-->


				+<!--+


				+    |start content


				+    +-->


				+<div id="content">


				+<div title="Portable Document Format" class="pdflink">


				+<a class="dida" href="javaExample.pdf"><img alt="PDF -icon" src="skin/images/pdfdoc.gif" class="skin"><br>


				+        PDF</a>


				+</div>


				+<h1>ZooKeeper Java Example</h1>


				+<div id="minitoc-area">


				+<ul class="minitoc">


				+<li>


				+<a href="#ch_Introduction">A Simple Watch Client</a>


				+<ul class="minitoc">


				+<li>


				+<a href="#sc_requirements">Requirements</a>


				+</li>


				+<li>


				+<a href="#sc_design">Program Design</a>


				+</li>


				+</ul>


				+</li>


				+<li>


				+<a href="#sc_executor">The Executor Class</a>


				+</li>


				+<li>


				+<a href="#sc_DataMonitor">The DataMonitor Class</a>


				+</li>


				+<li>


				+<a href="#sc_completeSourceCode">Complete Source Listings</a>


				+</li>


				+</ul>


				+</div>


				+


				+


				+


				+


				+


				+<a name="N10009"></a><a name="ch_Introduction"></a>


				+<h2 class="h3">A Simple Watch Client</h2>


				+<div class="section">


				+<p>To introduce you to the ZooKeeper Java API, we develop here a very simple


				+    watch client. This ZooKeeper client watches a ZooKeeper node for changes


				+    and responds to by starting or stopping a program.</p>


				+<a name="N10012"></a><a name="sc_requirements"></a>


				+<h3 class="h4">Requirements</h3>


				+<p>The client has four requirements:</p>


				+<ul>


				+<li>


				+<p>It takes as parameters:</p>


				+


				+<ul>


				+


				+<li>


				+<p>the address of the ZooKeeper service</p>


				+</li>


				+


				+<li>


				+<p> a znode, by name</p>


				+</li>


				+


				+<li>


				+<p> an executable with arguments.</p>


				+</li>


				+</ul>


				+</li>


				+


				+<li>


				+<p>It fetches the data associated with the znode and starts the executable.</p>


				+</li>


				+


				+<li>


				+<p>If the znode changes, the client refetches the contents and restarts the executable.</p>


				+</li>


				+


				+<li>


				+<p>If the znode disappears, the client kills the executable.</p>


				+</li>


				+</ul>


				+<a name="N1003B"></a><a name="sc_design"></a>


				+<h3 class="h4">Program Design</h3>


				+<p>Conventionally, ZooKeeper applications are broken into two units, one which maintains the connection,


				+   and the other which monitors data.  In this application, the class called the <strong>Executor</strong>


				+   maintains the ZooKeeper connection, and the class called the  <strong>DataMonitor</strong> monitors the data


				+   in the ZooKeeper tree. Also, Executor contains the main thread and contains the execution logic.


				+   It is responsible for what little user interaction there is, as well as interaction with the exectuable program you


				+   pass in as an argument and which the sample (per the requirements) shuts down and restarts, according to the


				+   state of the znode.</p>


				+</div>


				+


				+


				+<a name="N1004C"></a><a name="sc_executor"></a>


				+<h2 class="h3">The Executor Class</h2>


				+<div class="section">


				+<p>The Executor object is the primary container of the sample application. It contains


				+    both the <strong>ZooKeeper</strong> object, <strong>DataMonitor</strong>, as described above in


				+    <a href="#sc_design">Program Design</a>.  </p>


				+<pre class="code">


				+// from the Executor class...


				+


				+public static void main(String[] args) {


				+    if (args.length &lt; 4) {


				+        System.err


				+                .println("USAGE: Executor hostPort znode filename program [args ...]");


				+        System.exit(2);


				+    }


				+    String hostPort = args[0];


				+    String znode = args[1];


				+    String filename = args[2];


				+    String exec[] = new String[args.length - 3];


				+    System.arraycopy(args, 3, exec, 0, exec.length);


				+    try {


				+        Executor theExectutor = new Executor(hostPort, znode, filename, exec);


				+	theExectutor.run();


				+    } catch (Exception e) {


				+        e.printStackTrace();


				+    }


				+}


				+


				+public Executor(String hostPort, String znode, String filename,


				+    String exec[]) throws KeeperException, IOException {


				+    this.filename = filename;


				+    this.exec = exec;


				+


				+    //create a new zookeeper object, passing a self-reference in a the Watcher


				+    zk = new ZooKeeper(hostPort, 3000, this);


				+    dm = new DataMonitor(zk, znode, null, this);


				+}


				+


				+public void run() {


				+    try {


				+        synchronized (this) {


				+            while (!dm.dead) {


				+                wait();


				+            }


				+        }


				+    } catch (InterruptedException e) {


				+    }


				+}


				+</pre>


				+<p>


				+    Recall that the Executor's job is to starts and stop the executable whose name you pass in on the command line.


				+    It does this in response to events fired by the ZooKeeper object. As you can see in the code above, the Executor passes


				+    a reference to itself as the Watcher argument in the ZooKeeper constructor. It also passes a reference to itself


				+    as DataMonitorListener argument to the DataMonitor constructor. Per the Executor's definition, it implements both these


				+    interfaces:


				+    </p>


				+<pre class="code">


				+public class Executor implements Watcher, Runnable, DataMonitorListener {


				+...


				+    </pre>


				+<p>The <strong>Watcher</strong> interface is defined by the ZooKeeper Java API.


				+    ZooKeeper uses it to communicate back to its container. It supports only one method, <span class="codefrag command">process()</span>, and ZooKeeper uses


				+    it to communciates generic events that the main thread would be intersted in, such as the state of the ZooKeeper connection or the ZooKeeper session.The Executor


				+    in this example simply forwards those events down to the DataMonitor to decide what to do with them. It does this simply to illustrate


				+    the point that, by convention, the Executor or some Executor-like object "owns" the ZooKeeper connection, but it is free to delegate the events to other


				+    events to other objects. It also uses this as the default channel on which to fire watch events. (More on this later.)</p>


				+<pre class="code">


				+public void process(WatcherEvent event) {


				+    dm.process(event);


				+}


				+</pre>


				+<p>The <strong>DataMonitorListener</strong>


				+    interface, on the other hand, is not part of the the ZooKeeper API. It is a completely custom interface,


				+    designed for this sample application. The DataMonitor object uses it to communicate back to its container, which


				+    is also the the Executor object.The DataMonitorListener interface looks like this:</p>


				+<pre class="code">


				+public interface DataMonitorListener {


				+    /**


				+    * The existence status of the node has changed.


				+    */


				+    void exists(byte data[]);


				+


				+    /**


				+    * The ZooKeeper session is no longer valid.


				+    *


				+    * @param rc


				+    * the ZooKeeper reason code


				+    */


				+    void closing(int rc);


				+}


				+</pre>


				+<p>This interface is defined in the DataMonitor class and implemented in the Executor class.


				+    When <span class="codefrag command">Executor.exists()</span> is invoked,


				+    the Executor decides whether to start up or shut down per the requirements. Recall that the requires say to kill the executable when the


				+    znode ceases to <em>exist</em>. </p>


				+<p>When <span class="codefrag command">Executor.closing()</span>


				+    is invoked, the Executor decides whether or not to shut itself down in response to the ZooKeeper connection permanently disappearing.</p>


				+<p>As you might have guessed, DataMonitor is the object that invokes


				+    these methods, in response to changes in ZooKeeper's state.</p>


				+<p>Here are Executor's implementation of


				+    <span class="codefrag command">DataMonitorListener.exists()</span> and <span class="codefrag command">DataMonitorListener.closing</span>:


				+    </p>


				+<pre class="code">


				+public void exists( byte[] data ) {


				+    if (data == null) {


				+        if (child != null) {


				+            System.out.println("Killing process");


				+            child.destroy();


				+            try {


				+                child.waitFor();


				+            } catch (InterruptedException e) {


				+            }


				+        }


				+        child = null;


				+    } else {


				+        if (child != null) {


				+            System.out.println("Stopping child");


				+            child.destroy();


				+            try {


				+               child.waitFor();


				+            } catch (InterruptedException e) {


				+            e.printStackTrace();


				+            }


				+        }


				+        try {


				+            FileOutputStream fos = new FileOutputStream(filename);


				+            fos.write(data);


				+            fos.close();


				+        } catch (IOException e) {


				+            e.printStackTrace();


				+        }


				+        try {


				+            System.out.println("Starting child");


				+            child = Runtime.getRuntime().exec(exec);


				+            new StreamWriter(child.getInputStream(), System.out);


				+            new StreamWriter(child.getErrorStream(), System.err);


				+        } catch (IOException e) {


				+            e.printStackTrace();


				+        }


				+    }


				+}


				+


				+public void closing(int rc) {


				+    synchronized (this) {


				+        notifyAll();


				+    }


				+}


				+</pre>


				+</div>


				+


				+<a name="N100A0"></a><a name="sc_DataMonitor"></a>


				+<h2 class="h3">The DataMonitor Class</h2>


				+<div class="section">


				+<p>


				+The DataMonitor class has the meat of the ZooKeeper logic. It is mostly


				+asynchronous and event driven. DataMonitor kicks things off in the constructor with:</p>


				+<pre class="code">


				+public DataMonitor(ZooKeeper zk, String znode, Watcher chainedWatcher,


				+        DataMonitorListener listener) {


				+    this.zk = zk;


				+    this.znode = znode;


				+    this.chainedWatcher = chainedWatcher;


				+    this.listener = listener;


				+


				+    // Get things started by checking if the node exists. We are going


				+    // to be completely event driven


				+    <strong>zk.exists(znode, true, this, null);</strong>


				+}


				+</pre>


				+<p>The call to <span class="codefrag command">ZooKeeper.exists()</span> checks for the existence of the znode,


				+sets a watch, and passes a reference to itself (<span class="codefrag command">this</span>)


				+as the completion callback object. In this sense, it kicks things off, since the


				+real processing happens when the watch is triggered.</p>


				+<div class="note">


				+<div class="label">Note</div>


				+<div class="content">


				+


				+<p>Don't confuse the completion callback with the watch callback. The <span class="codefrag command">ZooKeeper.exists()</span>


				+completion callback, which happens to be the method <span class="codefrag command">StatCallback.processResult()</span> implemented


				+in the DataMonitor object, is invoked when the asynchronous <em>setting of the watch</em> operation


				+(by <span class="codefrag command">ZooKeeper.exists()</span>) completes on the server. </p>


				+


				+<p>


				+The triggering of the watch, on the other hand, sends an event to the <em>Executor</em> object, since


				+the Executor registered as the Watcher of the ZooKeeper object.</p>


				+


				+


				+<p>As an aside, you might note that the DataMonitor could also register itself as the Watcher


				+for this particular watch event. This is new to ZooKeeper 3.0.0 (the support of multiple Watchers). In this


				+example, however, DataMonitor does not register as the Watcher.</p>


				+


				+</div>


				+</div>


				+<p>When the <span class="codefrag command">ZooKeeper.exists()</span> operation completes on the server, the ZooKeeper API invokes this completion callback on


				+the client:</p>


				+<pre class="code">


				+public void processResult(int rc, String path, Object ctx, Stat stat) {


				+    boolean exists;


				+    switch (rc) {


				+    case Code.Ok:


				+        exists = true;


				+        break;


				+    case Code.NoNode:


				+        exists = false;


				+        break;


				+    case Code.SessionExpired:


				+    case Code.NoAuth:


				+        dead = true;


				+        listener.closing(rc);


				+        return;


				+    default:


				+        // Retry errors


				+        zk.exists(znode, true, this, null);


				+        return;


				+    }


				+


				+    byte b[] = null;


				+    if (exists) {


				+        try {


				+            <strong>b = zk.getData(znode, false, null);</strong>


				+        } catch (KeeperException e) {


				+            // We don't need to worry about recovering now. The watch


				+            // callbacks will kick off any exception handling


				+            e.printStackTrace();


				+        } catch (InterruptedException e) {


				+            return;


				+        }


				+    }


				+    if ((b == null &amp;&amp; b != prevData)


				+            || (b != null &amp;&amp; !Arrays.equals(prevData, b))) {


				+        <strong>listener.exists(b);</strong>


				+        prevData = b;


				+    }


				+}


				+</pre>


				+<p>


				+The code first checks the error codes for znode existence, fatal errors, and


				+recoverable errors. If the file (or znode) exists, it gets the data from the znode, and


				+then invoke the exists() callback of Executor if the state has changed. Note,


				+it doesn't have to do any Exception processing for the getData call because it


				+has watches pending for anything that could cause an error: if the node is deleted


				+before it calls <span class="codefrag command">ZooKeeper.getData()</span>, the watch event set by


				+the <span class="codefrag command">ZooKeeper.exists()</span> triggers a callback;


				+if there is a communication error, a connection watch event fires when


				+the connection comes back up.


				+</p>


				+<p>Finally, notice how DataMonitor processes watch events: </p>


				+<pre class="code">


				+public void process(WatcherEvent event) {


				+    String path = event.getPath();


				+    if (event.getType() == Watcher.Event.EventNone) {


				+        // We are are being told that the state of the


				+        // connection has changed


				+        switch (event.getState()) {


				+        case Event.KeeperStateSyncConnected:


				+            // Everything is happy. Lets kick things off


				+            // again by checking the existence of the znode


				+            zk.exists(znode, true, this, null);


				+            break;


				+        case Event.KeeperStateExpired:


				+            // It's all over


				+            dead = true;


				+            listener.closing(KeeperException.Code.SessionExpired);


				+            break;


				+        }


				+    } else {


				+        if (path != null &amp;&amp; path.equals(znode)) {


				+            // Something has changed on the node, let's find out


				+            zk.exists(znode, true, this, null);


				+        }


				+   }


				+   if (chainedWatcher != null) {


				+        chainedWatcher.process(event);


				+   }


				+}


				+</pre>


				+<p>


				+If the client-side ZooKeeper libraries can reestablish the communication channel to ZooKeeper, DataMonitor simply kicks


				+everything off again with the call to <span class="codefrag command">ZooKeeper.exists()</span>.


				+If it gets an event for a znode, it calls <span class="codefrag command">ZooKeeper.exists()</span> to find out what has changed.


				+</p>


				+</div>


				+


				+


				+<a name="N10104"></a><a name="sc_completeSourceCode"></a>


				+<h2 class="h3">Complete Source Listings</h2>


				+<div class="section">


				+<div class="note example">


				+<div class="label">Executor.java</div>


				+<div class="content">


				+<title>Executor.java</title>


				+<pre class="code">


				+/**


				+ * A simple example program to use DataMonitor to start and


				+ * stop executables based on a znode. The program watches the


				+ * specified znode and saves the data that corresponds to the


				+ * znode in the filesystem. It also starts the specified program


				+ * with the specified arguments when the znode exists and kills


				+ * the program if the znode goes away.


				+ */


				+package com.yahoo.zk.executor;


				+


				+import java.io.FileOutputStream;


				+import java.io.IOException;


				+import java.io.InputStream;


				+import java.io.OutputStream;


				+


				+import com.yahoo.zk.executor.DataMonitor.DataMonitorListener;


				+import com.yahoo.zookeeper.KeeperException;


				+import com.yahoo.zookeeper.Watcher;


				+import com.yahoo.zookeeper.ZooKeeper;


				+import com.yahoo.zookeeper.proto.WatcherEvent;


				+


				+public class Executor implements Watcher, Runnable, DataMonitorListener {


				+    String znode;


				+


				+    DataMonitor dm;


				+


				+    ZooKeeper zk;


				+


				+    String filename;


				+


				+    String exec[];


				+


				+    Process child;


				+


				+    public Executor(String hostPort, String znode, String filename,


				+            String exec[]) throws KeeperException, IOException {


				+        this.filename = filename;


				+        this.exec = exec;


				+        zk = new ZooKeeper(hostPort, 3000, this);


				+        dm = new DataMonitor(zk, znode, null, this);


				+    }


				+


				+    /**


				+     * @param args


				+     */


				+    public static void main(String[] args) {


				+        if (args.length &lt; 4) {


				+            System.err


				+                    .println("USAGE: Executor hostPort znode filename program [args ...]");


				+            System.exit(2);


				+        }


				+        String hostPort = args[0];


				+        String znode = args[1];


				+        String filename = args[2];


				+        String exec[] = new String[args.length - 3];


				+        System.arraycopy(args, 3, exec, 0, exec.length);


				+        try {


				+            new Executor(hostPort, znode, filename, exec).run();


				+        } catch (Exception e) {


				+            e.printStackTrace();


				+        }


				+    }


				+


				+    /***************************************************************************


				+     * We do process any events ourselves, we just need to forward them on.


				+     *


				+     * @see com.yahoo.zookeeper.Watcher#process(com.yahoo.zookeeper.proto.WatcherEvent)


				+     */


				+    @Override


				+    public void process(WatcherEvent event) {


				+        dm.process(event);


				+    }


				+


				+    @Override


				+    public void run() {


				+        try {


				+            synchronized (this) {


				+                while (!dm.dead) {


				+                    wait();


				+                }


				+            }


				+        } catch (InterruptedException e) {


				+        }


				+    }


				+


				+    @Override


				+    public void closing(int rc) {


				+        synchronized (this) {


				+            notifyAll();


				+        }


				+    }


				+


				+    static class StreamWriter extends Thread {


				+        OutputStream os;


				+


				+        InputStream is;


				+


				+        StreamWriter(InputStream is, OutputStream os) {


				+            this.is = is;


				+            this.os = os;


				+            start();


				+        }


				+


				+        public void run() {


				+            byte b[] = new byte[80];


				+            int rc;


				+            try {


				+                while ((rc = is.read(b)) &gt; 0) {


				+                    os.write(b, 0, rc);


				+                }


				+            } catch (IOException e) {


				+            }


				+


				+        }


				+    }


				+


				+    @Override


				+    public void exists(byte[] data) {


				+        if (data == null) {


				+            if (child != null) {


				+                System.out.println("Killing process");


				+                child.destroy();


				+                try {


				+                    child.waitFor();


				+                } catch (InterruptedException e) {


				+                }


				+            }


				+            child = null;


				+        } else {


				+            if (child != null) {


				+                System.out.println("Stopping child");


				+                child.destroy();


				+                try {


				+                    child.waitFor();


				+                } catch (InterruptedException e) {


				+                    e.printStackTrace();


				+                }


				+            }


				+            try {


				+                FileOutputStream fos = new FileOutputStream(filename);


				+                fos.write(data);


				+                fos.close();


				+            } catch (IOException e) {


				+                e.printStackTrace();


				+            }


				+            try {


				+                System.out.println("Starting child");


				+                child = Runtime.getRuntime().exec(exec);


				+                new StreamWriter(child.getInputStream(), System.out);


				+                new StreamWriter(child.getErrorStream(), System.err);


				+            } catch (IOException e) {


				+                e.printStackTrace();


				+            }


				+        }


				+    }


				+}


				+</pre>


				+


				+


				+</div>


				+</div>


				+<div class="note example">


				+<div class="label">DataMonitor.java</div>


				+<div class="content">


				+


				+<title>DataMonitor.java</title>


				+


				+<pre class="code">


				+/**


				+ * A simple class that monitors the data and existence of a ZooKeeper


				+ * node. It uses asynchronous ZooKeeper APIs.


				+ */


				+package com.yahoo.zk.executor;


				+


				+import java.util.Arrays;


				+


				+import com.yahoo.zookeeper.KeeperException;


				+import com.yahoo.zookeeper.Watcher;


				+import com.yahoo.zookeeper.ZooKeeper;


				+import com.yahoo.zookeeper.AsyncCallback.StatCallback;


				+import com.yahoo.zookeeper.KeeperException.Code;


				+import com.yahoo.zookeeper.data.Stat;


				+import com.yahoo.zookeeper.proto.WatcherEvent;


				+


				+public class DataMonitor implements Watcher, StatCallback {


				+


				+    ZooKeeper zk;


				+


				+    String znode;


				+


				+    Watcher chainedWatcher;


				+


				+    boolean dead;


				+


				+    DataMonitorListener listener;


				+


				+    byte prevData[];


				+


				+    public DataMonitor(ZooKeeper zk, String znode, Watcher chainedWatcher,


				+            DataMonitorListener listener) {


				+        this.zk = zk;


				+        this.znode = znode;


				+        this.chainedWatcher = chainedWatcher;


				+        this.listener = listener;


				+        // Get things started by checking if the node exists. We are going


				+        // to be completely event driven


				+        zk.exists(znode, true, this, null);


				+    }


				+


				+    /**


				+     * Other classes use the DataMonitor by implementing this method


				+     */


				+    public interface DataMonitorListener {


				+        /**


				+         * The existence status of the node has changed.


				+         */


				+        void exists(byte data[]);


				+


				+        /**


				+         * The ZooKeeper session is no longer valid.


				+         *


				+         * @param rc


				+         *                the ZooKeeper reason code


				+         */


				+        void closing(int rc);


				+    }


				+


				+    @Override


				+    /**


				+     * This is a watch event callback. The node we were watching has changed or


				+     * something happened to our connection to ZooKeeper.


				+     */


				+    public void process(WatcherEvent event) {


				+        String path = event.getPath();


				+        if (event.getType() == Watcher.Event.EventNone) {


				+            // We are are being told that the state of the


				+            // connection has changed


				+            switch (event.getState()) {


				+            case Event.KeeperStateSyncConnected:


				+                // Everything is happy. Lets kick things off


				+                // again by checking the existence of the znode


				+                zk.exists(znode, true, this, null);


				+                break;


				+            case Event.KeeperStateExpired:


				+                // It's all over


				+                dead = true;


				+                listener.closing(KeeperException.Code.SessionExpired);


				+                break;


				+            }


				+        } else {


				+            if (path != null &amp;&amp; path.equals(znode)) {


				+                // Something has changed on the node, let's find out


				+                zk.exists(znode, true, this, null);


				+            }


				+        }


				+        if (chainedWatcher != null) {


				+            chainedWatcher.process(event);


				+        }


				+    }


				+


				+    @Override


				+    public void processResult(int rc, String path, Object ctx, Stat stat) {


				+        boolean exists;


				+        switch (rc) {


				+        case Code.Ok:


				+            exists = true;


				+            break;


				+        case Code.NoNode:


				+            exists = false;


				+            break;


				+        case Code.SessionExpired:


				+        case Code.NoAuth:


				+            dead = true;


				+            listener.closing(rc);


				+            return;


				+        default:


				+            // Retry errors


				+            zk.exists(znode, true, this, null);


				+            return;


				+        }


				+


				+        byte b[] = null;


				+        if (exists) {


				+            try {


				+                b = zk.getData(znode, false, null);


				+            } catch (KeeperException e) {


				+                // We don't need to worry about recovering now. The watch


				+                // callbacks will kick off any exception handling


				+                e.printStackTrace();


				+            } catch (InterruptedException e) {


				+                return;


				+            }


				+        }


				+        if ((b == null &amp;&amp; b != prevData)


				+                || (b != null &amp;&amp; !Arrays.equals(prevData, b))) {


				+            listener.exists(b);


				+            prevData = b;


				+        }


				+    }


				+}


				+</pre>


				+


				+</div>


				+</div>


				+</div>


				+


				+


				+


				+


				+<p align="right">


				+<font size="-2"></font>


				+</p>


				+</div>


				+<!--+


				+    |end content


				+    +-->


				+<div class="clearboth">&nbsp;</div>


				+</div>


				+<div id="footer">


				+<!--+


				+    |start bottomstrip


				+    +-->


				+<div class="lastmodified">


				+<script type="text/javascript"><!--


				+document.write("Last Published: " + document.lastModified);


				+//  --></script>


				+</div>


				+<div class="copyright">


				+        Copyright &copy;


				+         2008 <a href="http://www.apache.org/licenses/">The Apache Software Foundation.</a>


				+</div>


				+<!--+


				+    |end bottomstrip


				+    +-->


				+</div>


				+</body>


				+</html>

--- a/docs/javaExample.pdf
+++ b/docs/javaExample.pdf
--- a/docs/linkmap.html
+++ b/docs/linkmap.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

@@ -210,6 +219,24 @@ document.write("Last Published: " + document.lastModified);

				 </li>


				 </ul>





				+<ul>


				+<li>


				+<a href="javaExample.html">Java Example</a>&nbsp;&nbsp;___________________&nbsp;&nbsp;<em>javaEx</em>


				+</li>


				+</ul>


				+


				+<ul>


				+<li>


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>&nbsp;&nbsp;___________________&nbsp;&nbsp;<em>barTutor</em>


				+</li>


				+</ul>


				+


				+<ul>


				+<li>


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>&nbsp;&nbsp;___________________&nbsp;&nbsp;<em>internals</em>


				+</li>


				+</ul>


				+


				 <ul>


				 <li>


				 <a href="api/index.html">API Docs</a>&nbsp;&nbsp;___________________&nbsp;&nbsp;<em>api</em>

--- a/docs/linkmap.pdf
+++ b/docs/linkmap.pdf
@@ -5,10 +5,10 @@

				 /Producer (FOP 0.20.5) >>


				 endobj


				 5 0 obj


				-<< /Length 840 /Filter [ /ASCII85Decode /FlateDecode ]


				+<< /Length 955 /Filter [ /ASCII85Decode /FlateDecode ]


				  >>


				 stream


				-Gatn%;,>q#&BE]".Ju)K^p>'98KJ6J`l&"=84X]Kj<\\ZOi/D_WVH1.'&#=<&1O]G>2NJns6jcrF2tQ[q90(s63Q;ELRPur6X]"aJF"))W:=kbT[,t:kMXt.XYTGY*0DAN1C'8HGfW>,4(@_=F6</$+.qc6aMQG^i&?J,=_.dkl')En/-m@g[$-F"Wbt/-B'-lLMgkFfcl&Bb2`>I))i;k`9H(rM/(YD&l6mN?W]&BS0q1eP4Za]nB+^*>(\W2BfK72ae1;!f#h!"e?U^u;P7'a[n=R1^I6dcY+:0`\+u0S[jZ!`9GQU5d,\V^VKQ3@VWD5@^h)Ac,0'8o(eF1ahTi<E.*<s_,#:&qd"RSrrG#RL=.#-L$)G"[g0rMMmJ`-md:TY_7/7m?RTrTPD4Xmq4b=[mK$5*h[ofhRB/.MQlUgCm/94Lr+l;;JZW/OD_YH"_u.,mV=H5CW0PgfWq^&l!NoVrOL/uqcCD4YZF3r9%V`#tq!-sLjUe#\dn(<mAXW)D1g/XM#V[>R&aeWf\3f-8I>U$R1SN;em]BH8o<LWZ?RRYF7Y[#>dP(Hp\jHWeQEFODb=.jdkG8`tlFB\hIC#;mIA8$A\+gMg(R4<,r6Zc1/oESTJFnMj61UX9/</lXa=<A*[<S%jN*m6GKY%MZ6%iY5pegBcl*m15^KqP%*Wq+$B2+7l1rmc(\dI>PYX[^BlI"Dk:5J-"@2,=iZM,Zo@OhJq#-&NdaCa[-V:k&b.$0c4m7+s4+`P<%%PF/;oQe+[&?K]1c3#_c$3[WWRr74Al$^=>l_'p[f>e!hOu?iJDt/B`@7eZKosf(Qd&;qS#I%k`l_df~>


				+Gatn%>u03/'Sc)R.rmSY^p>%C+.))1YYDoh1hgHg9]HnL1_,O5ftX/C:h#&NUp*m7rLobUZ/bTRlt<Yca'jK)J3gW6_=he%K>D;W!bf:r8DCD*5S-CVOKF/-4'+c?h-^c6M4*&m,0IMTX+l1ah%\GQ>Rp-'=__:.H8kU6A7nB""pjtGNZ=$g&4+afA[eCO6dU!ga)85Wq*`SRHHEn'Du%a_aE:L%D2m&^m]eOVPdD`:CXjtXUH!L17iliBJi%a^^W)YTYuh.`D4qOEA@pPk/=3YJ$\b/@n(42pJC1EJ3(>#bYoBuUUE9P-/He?>6O.rKTmlNeEm^u5HXg7#E[k6`_B-r;b2qWb_gnJ)J7A-962Sq8o2>Bp.#PU&j[a3r0updH#)S-$LQm"Q='Q2)kkp"4#Ji>t=U?p^^kjQlT7`0>OsD"uo`Fi?CG!]ZJ9n&[dQF/7X2aO@)S)=02Wbii7#%K6!q\h$Q"'&:=!&u3ShqX`HiaSL!"n55<kZd</"p:uI,bT3nbTqBE?s$ljqq08Bb/fX?].gLI)`PkO5"=P8<UL*XHa]ZKostVBC*H,njebBc/7!2-19"F#lZOc7usF,@1mqSZd4jK^0B[(iJf^]2.kGD.jj_+LdC7Qgb@8I*FD0uGb&F:e`RbElI=V>Was*0,Aa_P)A-%P$rP&a8a81br8Meu4mXe`W>>R&D!$PY8rV5Qd!mL$4#%VONU''kFQ(5a&G3QtG^fH`*'<qYh2g"B'RB*:Q&3AgD8)BR2#RTtVD:%)gJKNuLguMn+8GbQDX'^3$VNMYLd`FSOXhgVpt\;-g$HF'\\%\MR;5!`!U57\^bekM=O&O3qe`<mc2>"L:N0"+<N.38NSeE2L4I:Wb^lkp.^?S86OeL(.2mLL_Sdq[Dlpm)?Eo4?^QM7'@EKKKQ;*ck73SlV.uL%LC"HCXf;;m53>e(]&%OamRf~>


				 endstream


				 endobj


				 6 0 obj

@@ -72,17 +72,17 @@ endobj

				 xref


				 0 12


				 0000000000 65535 f


				-0000001663 00000 n


				-0000001721 00000 n


				-0000001771 00000 n


				+0000001778 00000 n


				+0000001836 00000 n


				+0000001886 00000 n


				 0000000015 00000 n


				 0000000071 00000 n


				-0000001002 00000 n


				-0000001108 00000 n


				-0000001220 00000 n


				-0000001329 00000 n


				-0000001439 00000 n


				-0000001547 00000 n


				+0000001117 00000 n


				+0000001223 00000 n


				+0000001335 00000 n


				+0000001444 00000 n


				+0000001554 00000 n


				+0000001662 00000 n


				 trailer


				 <<


				 /Size 12

@@ -90,5 +90,5 @@ trailer

				 /Info 4 0 R


				 >>


				 startxref


				-1891


				+2006


				 %%EOF

--- a/docs/recipes.html
+++ b/docs/recipes.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

--- a/docs/skin/profile.css
+++ b/docs/skin/profile.css
@@ -156,8 +156,13 @@ a:hover { color:#6587ff}

				       font-family: monospace;


				     }





				-    .code {


				-      font-family: "Courier New", Courier, monospace;


				-      font-size: 110%;


				+    pre.code {


				+      margin-left: 0em;


				+      padding: 0.5em;


				+      background-color: #f0f0f0;


				+      font-family: monospace;


				     }


				+


				+


				+




--- a/docs/zookeeperAdmin.html
+++ b/docs/zookeeperAdmin.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <div class="menupagetitle">Administrator's Guide</div>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

@@ -341,7 +350,6 @@ document.write("Last Published: " + document.lastModified);

				 <p>Install the ZooKeeper Server Package. It can be downloaded


				             from:


				           </p>


				-





				 <p>




@@ -474,7 +482,7 @@ server.3=zoo3:2888</span>

				 <p>The steps to setting up a single server instance are the similar


				       to the above, except the configuration file is simpler. You can find the


				       complete instructions in the <a href="zookeeperStarted.html#sc_InstallingSingleMode">Installing and


				-      Running ZooKeeper in SIngle Server Mode</a> section of the <a href="zookeeperStarted.html">ZooKeeper Getting Started


				+      Running ZooKeeper in Single Server Mode</a> section of the <a href="zookeeperStarted.html">ZooKeeper Getting Started


				       Guide</a>.</p>


				 <p>For information on installing the client side libraries, refer to


				       the <a href="zookeeperProgrammers.html#Bindings">Bindings</a>

@@ -615,11 +623,18 @@ server.3=zoo3:2888</span>

				 <p></p>


				 <a name="N1018A"></a><a name="sc_logging"></a>


				 <h3 class="h4">Logging</h3>


				-<p></p>


				-<a name="N10193"></a><a name="sc_troubleshooting"></a>


				+<p>ZooKeeper uses <strong>log4j</strong> version 1.2 as


				+      its logging infrastructure. The  ZooKeeper default <span class="codefrag filename">log4j.properties</span>


				+      file resides in the <span class="codefrag filename">conf</span> directory. Log4j requires that


				+      <span class="codefrag filename">log4j.properties</span> either be in the working directory


				+      (the directory from which ZooKeeper is run) or be accessible from the classpath.</p>


				+<p>For more information, see


				+      <a href="http://logging.apache.org/log4j/1.2/manual.html#defaultInit">Log4j Default Initialization Procedure</a>


				+      of the log4j manual.</p>


				+<a name="N101AA"></a><a name="sc_troubleshooting"></a>


				 <h3 class="h4">Troubleshooting</h3>


				 <p></p>


				-<a name="N1019C"></a><a name="sc_configuration"></a>


				+<a name="N101B3"></a><a name="sc_configuration"></a>


				 <h3 class="h4">Configuration Parameters</h3>


				 <p>ZooKeeper's behavior is governed by the ZooKeeper configuration


				       file. This file is designed so that the exact same file can be used by

@@ -627,7 +642,7 @@ server.3=zoo3:2888</span>

				       layouts are the same. If servers use different configuration files, care


				       must be taken to ensure that the list of servers in all of the different


				       configuration files match.</p>


				-<a name="N101A5"></a><a name="sc_minimumConfiguration"></a>


				+<a name="N101BC"></a><a name="sc_minimumConfiguration"></a>


				 <h4>Minimum Configuration</h4>


				 <p>Here are the minimum configuration keywords that must be defined


				         in the configuration file:</p>

@@ -674,7 +689,7 @@ server.3=zoo3:2888</span>

				 </dd>





				 </dl>


				-<a name="N101CC"></a><a name="sc_advancedConfiguration"></a>


				+<a name="N101E3"></a><a name="sc_advancedConfiguration"></a>


				 <h4>Advanced Configuration</h4>


				 <p>The configuration settings in the section are optional. You can


				         use them to further fine tune the behaviour of your ZooKeeper servers.

@@ -765,7 +780,7 @@ server.3=zoo3:2888</span>

				 </dd>





				 </dl>


				-<a name="N1022C"></a><a name="sc_clusterOptions"></a>


				+<a name="N10243"></a><a name="sc_clusterOptions"></a>


				 <h4>Cluster Options</h4>


				 <p>The options in this section are designed for use in quorums --


				         that is, when deploying clusters of servers.</p>

@@ -868,7 +883,7 @@ server.3=zoo3:2888</span>




				 </dl>


				 <p></p>


				-<a name="N10298"></a><a name="Unsafe+Options"></a>


				+<a name="N102AF"></a><a name="Unsafe+Options"></a>


				 <h4>Unsafe Options</h4>


				 <p>The following options can be useful, but be careful when you use


				         them. The risk of each is explained along with the explanation of what

@@ -913,7 +928,7 @@ server.3=zoo3:2888</span>

				 </dd>





				 </dl>


				-<a name="N102CA"></a><a name="sc_zkCommands"></a>


				+<a name="N102E1"></a><a name="sc_zkCommands"></a>


				 <h3 class="h4">ZooKeeper Commands: The Four Letter Words</h3>


				 <p>ZooKeeper responds to a small set of commands. Each command is


				       composed of four letters. You issue the commands to ZooKeeper via telnet

@@ -962,7 +977,7 @@ server.3=zoo3:2888</span>

				 <pre class="code">$ echo ruok | nc 127.0.0.1 5111


				 imok


				 </pre>


				-<a name="N102FC"></a><a name="sc_dataFileManagement"></a>


				+<a name="N10313"></a><a name="sc_dataFileManagement"></a>


				 <h3 class="h4">Data File Management</h3>


				 <p>ZooKeeper stores its data in a data directory and its transaction


				       log in a transaction log directory. By default these two directories are

@@ -970,7 +985,7 @@ imok

				       transaction log files in a separate directory than the data files.


				       Throughput increases and latency decreases when transaction logs reside


				       on a dedicated log devices.</p>


				-<a name="N10305"></a><a name="The+Data+Directory"></a>


				+<a name="N1031C"></a><a name="The+Data+Directory"></a>


				 <h4>The Data Directory</h4>


				 <p>This directory has two files in it:</p>


				 <ul>

@@ -1016,14 +1031,14 @@ imok

				         idempotent nature of its updates. By replaying the transaction log


				         against fuzzy snapshots ZooKeeper gets the state of the system at the


				         end of the log.</p>


				-<a name="N10341"></a><a name="The+Log+Directory"></a>


				+<a name="N10358"></a><a name="The+Log+Directory"></a>


				 <h4>The Log Directory</h4>


				 <p>The Log Directory contains the ZooKeeper transaction logs.


				         Before any update takes place, ZooKeeper ensures that the transaction


				         that represents the update is written to non-volatile storage. A new


				         log file is started each time a snapshot is begun. The log file's


				         suffix is the first zxid written to that log.</p>


				-<a name="N1034B"></a><a name="File+Management"></a>


				+<a name="N10362"></a><a name="File+Management"></a>


				 <h4>File Management</h4>


				 <p>The format of snapshot and log files does not change between


				         standalone ZooKeeper servers and different configurations of

@@ -1040,7 +1055,7 @@ imok

				         needs the latest complete fuzzy snapshot and the log files from the


				         start of that snapshot. The PurgeTxnLog utility implements a simple


				         retention policy that administrators can use.</p>


				-<a name="N1035C"></a><a name="sc_commonProblems"></a>


				+<a name="N10373"></a><a name="sc_commonProblems"></a>


				 <h3 class="h4">Things to Avoid</h3>


				 <p>Here are some common problems you can avoid by configuring


				       ZooKeeper correctly:</p>

@@ -1094,7 +1109,7 @@ imok

				 </dd>





				 </dl>


				-<a name="N10380"></a><a name="sc_bestPractices"></a>


				+<a name="N10397"></a><a name="sc_bestPractices"></a>


				 <h3 class="h4">Best Practices</h3>


				 <p>For best results, take note of the following list of good


				       Zookeeper practices. <em>[tbd...]</em>

--- a/docs/zookeeperAdmin.pdf
+++ b/docs/zookeeperAdmin.pdf
--- a/docs/zookeeperInternals.html
+++ b/docs/zookeeperInternals.html
@@ -0,0 +1,729 @@

				+<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">


				+<html>


				+<head>


				+<META http-equiv="Content-Type" content="text/html; charset=UTF-8">


				+<meta content="Apache Forrest" name="Generator">


				+<meta name="Forrest-version" content="0.8">


				+<meta name="Forrest-skin-name" content="pelt">


				+<title>ZooKeeper Internals</title>


				+<link type="text/css" href="skin/basic.css" rel="stylesheet">


				+<link media="screen" type="text/css" href="skin/screen.css" rel="stylesheet">


				+<link media="print" type="text/css" href="skin/print.css" rel="stylesheet">


				+<link type="text/css" href="skin/profile.css" rel="stylesheet">


				+<script src="skin/getBlank.js" language="javascript" type="text/javascript"></script><script src="skin/getMenu.js" language="javascript" type="text/javascript"></script><script src="skin/fontsize.js" language="javascript" type="text/javascript"></script>


				+<link rel="shortcut icon" href="images/favicon.ico">


				+</head>


				+<body onload="init()">


				+<script type="text/javascript">ndeSetTextSize();</script>


				+<div id="top">


				+<!--+


				+    |breadtrail


				+    +-->


				+<div class="breadtrail">


				+<a href="http://www.apache.org/">Apache</a> &gt; <a href="http://hadoop.apache.org/">Hadoop</a> &gt; <a href="http://hadoop.apache.org/zookeeper/">ZooKeeper</a><script src="skin/breadcrumbs.js" language="JavaScript" type="text/javascript"></script>


				+</div>


				+<!--+


				+    |header


				+    +-->


				+<div class="header">


				+<!--+


				+    |start group logo


				+    +-->


				+<div class="grouplogo">


				+<a href="http://hadoop.apache.org/"><img class="logoImage" alt="Hadoop" src="images/hadoop-logo.jpg" title="Apache Hadoop"></a>


				+</div>


				+<!--+


				+    |end group logo


				+    +-->


				+<!--+


				+    |start Project Logo


				+    +-->


				+<div class="projectlogo">


				+<a href="http://hadoop.apache.org/zookeeper/"><img class="logoImage" alt="ZooKeeper" src="images/zookeeper_small.gif" title="The Hadoop database"></a>


				+</div>


				+<!--+


				+    |end Project Logo


				+    +-->


				+<!--+


				+    |start Search


				+    +-->


				+<div class="searchbox">


				+<form action="http://www.google.com/search" method="get" class="roundtopsmall">


				+<input value="hadoop.apache.org" name="sitesearch" type="hidden"><input onFocus="getBlank (this, 'Search the site with google');" size="25" name="q" id="query" type="text" value="Search the site with google">&nbsp;


				+                    <input name="Search" value="Search" type="submit">


				+</form>


				+</div>


				+<!--+


				+    |end search


				+    +-->


				+<!--+


				+    |start Tabs


				+    +-->


				+<ul id="tabs">


				+<li>


				+<a class="unselected" href="http://hadoop.apache.org/zookeeper/">Project</a>


				+</li>


				+<li>


				+<a class="unselected" href="http://wiki.apache.org/hadoop/ZooKeeper">Wiki</a>


				+</li>


				+<li class="current">


				+<a class="selected" href="index.html">ZooKeeper Documentation</a>


				+</li>


				+</ul>


				+<!--+


				+    |end Tabs


				+    +-->


				+</div>


				+</div>


				+<div id="main">


				+<div id="publishedStrip">


				+<!--+


				+    |start Subtabs


				+    +-->


				+<div id="level2tabs"></div>


				+<!--+


				+    |end Endtabs


				+    +-->


				+<script type="text/javascript"><!--


				+document.write("Last Published: " + document.lastModified);


				+//  --></script>


				+</div>


				+<!--+


				+    |breadtrail


				+    +-->


				+<div class="breadtrail">


				+


				+             &nbsp;


				+           </div>


				+<!--+


				+    |start Menu, mainarea


				+    +-->


				+<!--+


				+    |start Menu


				+    +-->


				+<div id="menu">


				+<div onclick="SwitchMenu('menu_selected_1.1', 'skin/')" id="menu_selected_1.1Title" class="menutitle" style="background-image: url('skin/images/chapter_open.gif');">Documentation</div>


				+<div id="menu_selected_1.1" class="selectedmenuitemgroup" style="display: block;">


				+<div class="menuitem">


				+<a href="index.html">Welcome</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperOver.html">Zookeeper Overview</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperStarted.html">Getting Started</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperProgrammers.html">Programmer's Guide</a>


				+</div>


				+<div class="menuitem">


				+<a href="recipes.html">Recipes</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperAdmin.html">Administrator's Guide</a>


				+</div>


				+<div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menupage">


				+<div class="menupagetitle">ZooKeeper Internals</div>


				+</div>


				+<div class="menuitem">


				+<a href="api/index.html">API Docs</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://wiki.apache.org/hadoop/ZooKeeper">Wiki</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://wiki.apache.org/hadoop/ZooKeeper/FAQ">FAQ</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://hadoop.apache.org/zookeeper/mailing_lists.html">Mailing Lists</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperOtherInfo.html">Other Info</a>


				+</div>


				+</div>


				+<div id="credit"></div>


				+<div id="roundbottom">


				+<img style="display: none" class="corner" height="15" width="15" alt="" src="skin/images/rc-b-l-15-1body-2menu-3menu.png"></div>


				+<!--+


				+  |alternative credits


				+  +-->


				+<div id="credit2"></div>


				+</div>


				+<!--+


				+    |end Menu


				+    +-->


				+<!--+


				+    |start content


				+    +-->


				+<div id="content">


				+<div title="Portable Document Format" class="pdflink">


				+<a class="dida" href="zookeeperInternals.pdf"><img alt="PDF -icon" src="skin/images/pdfdoc.gif" class="skin"><br>


				+        PDF</a>


				+</div>


				+<h1>ZooKeeper Internals</h1>


				+<div id="minitoc-area">


				+<ul class="minitoc">


				+<li>


				+<a href="#ch_Introduction">Introduction</a>


				+</li>


				+<li>


				+<a href="#sc_atomicBroadcast">Atomic Broadcast</a>


				+<ul class="minitoc">


				+<li>


				+<a href="#sc_guaranteesPropertiesDefinitions">Guarantees, Properties, and Definitions</a>


				+</li>


				+<li>


				+<a href="#sc_leaderElection">Leader Activation</a>


				+</li>


				+<li>


				+<a href="#sc_activeMessaging">Active Messaging</a>


				+</li>


				+<li>


				+<a href="#sc_summary">Summary</a>


				+</li>


				+<li>


				+<a href="#sc_comparisons">Comparisons</a>


				+</li>


				+</ul>


				+</li>


				+<li>


				+<a href="#sc_logging">Logging</a>


				+<ul class="minitoc">


				+<li>


				+<a href="#sc_developerGuidelines">Developer Guidelines</a>


				+<ul class="minitoc">


				+<li>


				+<a href="#sc_rightLevel">Logging at the Right Level</a>


				+</li>


				+<li>


				+<a href="#sc_log4jIdioms">Use of Standard log4j Idioms</a>


				+</li>


				+</ul>


				+</li>


				+</ul>


				+</li>


				+</ul>


				+</div>


				+


				+


				+


				+


				+


				+<a name="N10009"></a><a name="ch_Introduction"></a>


				+<h2 class="h3">Introduction</h2>


				+<div class="section">


				+<p>This document contains information on the inner workings of ZooKeeper.


				+    So far, it discusses these topics:


				+    </p>


				+<ul>


				+


				+<li>


				+<p>


				+<a href="#sc_atomicBroadcast">Atomic Broadcast</a>


				+</p>


				+</li>


				+


				+<li>


				+<p>


				+<a href="#sc_logging">Logging</a>


				+</p>


				+</li>


				+


				+</ul>


				+</div>


				+


				+


				+<a name="N10022"></a><a name="sc_atomicBroadcast"></a>


				+<h2 class="h3">Atomic Broadcast</h2>


				+<div class="section">


				+<p>


				+At the heart of ZooKeeper is an atomic messaging system that keeps all of the servers in sync.</p>


				+<a name="N1002B"></a><a name="sc_guaranteesPropertiesDefinitions"></a>


				+<h3 class="h4">Guarantees, Properties, and Definitions</h3>


				+<p>


				+The specific guarantees provided by the messaging system used by ZooKeeper are the following:</p>


				+<dl>


				+


				+


				+<dt>


				+<term>


				+<em>Reliable delivery</em>


				+</term>


				+</dt>


				+<dd>


				+<p>If a message, m, is delivered


				+by one server, it will be eventually delivered by all servers.</p>


				+</dd>


				+


				+


				+<dt>


				+<term>


				+<em>Total order</em>


				+</term>


				+</dt>


				+<dd>


				+<p> If a message is


				+delivered before message b by one server, a will be delivered before b by all


				+servers. If a and b are delivered messages, either a will be delivered before b


				+or b will be delivered before a.</p>


				+</dd>


				+


				+


				+<dt>


				+<term>


				+<em>Causal order</em>


				+</term>


				+</dt>


				+<dd>


				+<p>


				+If a message b is sent after a message a has been delivered by the sender of b,


				+a must be ordered before b. If a sender sends c after sending b, c must be ordered after b.


				+</p>


				+</dd>


				+


				+


				+</dl>


				+<p>


				+The ZooKeeper messaging system also needs to be efficient, reliable, and easy to


				+implement and maintain. We make heavy use of messaging, so we need the system to


				+be able to handle thousands of requests per second. Although we can require at


				+least k+1 correct servers to send new messages, we must be able to recover from


				+correlated failures such as power outages. When we implemented the system we had


				+little time and few engineering resources, so we needed a protocol that is


				+accessible to engineers and is easy to implement. We found that our protocol


				+satisfied all of these goals.


				+


				+</p>


				+<p>


				+Our protocol assumes that we can construct point-to-point FIFO channels between


				+the servers. While similar services usually assume message delivery that can


				+lose or reorder messages, our assumption of FIFO channels is very practical


				+given that we use TCP for communication. Specifically we rely on the following property of TCP:</p>


				+<dl>


				+


				+


				+<dt>


				+<term>


				+<em>Ordered delivery</em>


				+</term>


				+</dt>


				+<dd>


				+<p>Data is delivered in the same order it is sent and a message m is


				+delivered only after all messages sent before m have been delivered.


				+(The corollary to this is that if message m is lost all messages after m will be lost.)</p>


				+</dd>


				+


				+


				+<dt>


				+<term>


				+<em>No message after close</em>


				+</term>


				+</dt>


				+<dd>


				+<p>Once a FIFO channel is closed, no messages will be received from it.</p>


				+</dd>


				+


				+


				+</dl>


				+<p>


				+FLP proved that consensus cannot be achieved in asynchronous distributed systems


				+if failures are possible. To ensure we achieve consensus in the presence of failures


				+we use timeouts. However, we rely on times for liveness not for correctness. So,


				+if timeouts stop working (clocks malfunction for example) the messaging system may


				+hang, but it will not violate its guarantees.</p>


				+<p>When describing the ZooKeeper messaging protocol we will talk of packets,


				+proposals, and messages:</p>


				+<dl>


				+


				+<dt>


				+<term>


				+<em>Packet</em>


				+</term>


				+</dt>


				+<dd>


				+<p>a sequence of bytes sent through a FIFO channel</p>


				+</dd>


				+<dt>


				+<term>


				+<em>Proposal</em>


				+</term>


				+</dt>


				+<dd>


				+<p>a unit of agreement. Proposals are agreed upon by exchanging packets


				+with a quorum of ZooKeeper servers. Most proposals contain messages, however the


				+NEW_LEADER proposal is an example of a proposal that does not correspond to a message.</p>


				+</dd>


				+<dt>


				+<term>


				+<em>Message</em>


				+</term>


				+</dt>


				+<dd>


				+<p>a sequence of bytes to be atomically broadcast to all ZooKeeper


				+servers. A message put into a proposal and agreed upon before it is delivered.</p>


				+</dd>


				+


				+


				+</dl>


				+<p>


				+As stated above, ZooKeeper guarantees a total order of messages, and it also


				+guarantees a total order of proposals. ZooKeeper exposes the total ordering using


				+a ZooKeeper transaction id (<em>zxid</em>). All proposals will be stamped with a zxid when


				+it is proposed and exactly reflects the total ordering. Proposals are sent to all


				+ZooKeeper servers and committed when a quorum of them acknowledge the proposal.


				+If a proposal contains a message, the message will be delivered when the proposal


				+is committed. Acknowledgement means the server has recorded the proposal to persistent storage.


				+Our quorums have the requirement that any pair of quorum must have at least one server


				+in common. We ensure this by requiring that all quorums have size (<em>n/2+1</em>) where


				+n is the number of servers that make up a ZooKeeper service.


				+</p>


				+<p>


				+The zxid has two parts: the epoch and a counter. In our implementation the zxid


				+is a 64-bit number. We use the high order 32-bits for the epoch and the low order


				+32-bits for the counter. Because it has two parts represent the zxid both as a


				+number and as a pair of integers, (<em>epoch, count</em>). The epoch number represents a


				+change in leadership. Each time a new leader comes into power it will have its


				+own epoch number. We have a simple algorithm to assign a unique zxid to a proposal:


				+the leader simply increments the zxid to obtain a unique zxid for each proposal.


				+<em>Leadership activation will ensure that only one leader uses a given epoch, so our


				+simple algorithm guarantees that every proposal will have a unique id.</em>


				+


				+</p>


				+<p>


				+ZooKeeper messaging consists of two phases:</p>


				+<dl>


				+


				+<dt>


				+<term>


				+<em>Leader activation</em>


				+</term>


				+</dt>


				+<dd>


				+<p>In this phase a leader establishes the correct state of the system


				+and gets ready to start making proposals.</p>


				+</dd>


				+


				+


				+<dt>


				+<term>


				+<em>Active messaging</em>


				+</term>


				+</dt>


				+<dd>


				+<p>In this phase a leader accepts messages to propose and coordinates message delivery.</p>


				+</dd>


				+


				+</dl>


				+<p>


				+ZooKeeper is a holistic protocol. We do not focus on individual proposals, rather


				+look at the stream of proposals as a whole. Our strict ordering allows us to do this


				+efficiently and greatly simplifies our protocol. Leadership activation embodies


				+this holistic concept. A leader becomes active only when a quorum of followers


				+(The leader counts as a follower as well. You can always vote for yourself ) has synced


				+up with the leader, they have the same state. This state consists of all of the


				+proposals that the leader believes have been committed and the proposal to follow


				+the leader, the NEW_LEADER proposal. (Hopefully you are thinking to


				+yourself, <em>Does the set of proposals that the leader believes has been committed


				+included all the proposals that really have been committed?</em> The answer is <em>yes</em>.


				+Below, we make clear why.)


				+</p>


				+<a name="N100B9"></a><a name="sc_leaderElection"></a>


				+<h3 class="h4">Leader Activation</h3>


				+<p>


				+Leader activation includes leader election. We currently have two leader election


				+algorithms in ZooKeeper: LeaderElection and FastLeaderElection (AuthFastLeaderElection


				+is a variant of FastLeaderElection). ZooKeeper messaging doesn't care about the


				+exact method of electing a leader has long as the following holds:


				+</p>


				+<ul>


				+


				+


				+<li>


				+<p>The leader has seen the highest zxid of all the followers.</p>


				+</li>


				+


				+<li>


				+<p>A quorum of servers have committed to following the leader.</p>


				+</li>


				+


				+


				+</ul>


				+<p>


				+Of these two requirements only the first, the highest zxid amoung the followers


				+needs to hold for correct operation. The second requirement, a quorum of followers,


				+just needs to hold with high probability. We are going to recheck the second requirement,


				+so if a failure happens during or after the leader election and quorum is lost,


				+we will recover by abandoning leader activation and running another election.


				+</p>


				+<p>


				+After leader election a single server will be designated as a leader and start


				+waiting for followers to connect. The rest of the servers will try to connect to


				+the leader. The leader will sync up with followers by sending any proposals they


				+are missing, or if a follower is missing too many proposals, it will send a full


				+snapshot of the state to the follower.


				+</p>


				+<p>


				+There is a corner cases that a follower arrives that has proposals, U, not seen


				+by a leader. Proposals are seen in order, so the proposals of U will have a zxids


				+higher than zxids seen by the leader. The follower must have arrived after the


				+leader election, otherwise the follower would have been elected leader given that


				+it has seen a higher zxid. Since committed proposals must be seen by a quorum of


				+servers, and a quorum of servers that elected the leader did not see U, the proposals


				+of you have not been committed, so they can be discarded. When the follower connects


				+to the leader, the leader will tell the follower to discard U.


				+</p>


				+<p>


				+A new leader establishes a zxid to start using for new proposals by getting the


				+epoch, e, of the highest zxid it has seen and setting the next zxid to use to be


				+(e+1, 0), fter the leader syncs with a follower, it will propose a NEW_LEADER


				+proposal. Once the NEW_LEADER proposal has been committed, the leader will activate


				+and start receiving and issuing proposals.


				+</p>


				+<p>


				+It all sounds complicated but here are the basic rules of operation during leader


				+activation:


				+</p>


				+<ul>


				+


				+<li>


				+<p>A follower will ACK the NEW_LEADER proposal after it has synced with the leader.</p>


				+</li>


				+


				+<li>


				+<p>A follower will only ACK a NEW_LEADER proposal with a given zxid from a single server.</p>


				+</li>


				+


				+<li>


				+<p>A new leader will COMMIT the NEW_LEADER proposal when a quorum of followers have ACKed it.</p>


				+</li>


				+


				+<li>


				+<p>A follower will commit any state it received from the leader when the NEW_LEADER proposal is COMMIT.</p>


				+</li>


				+


				+<li>


				+<p>A new leader will not accept new proposals until the NEW_LEADER proposal has been COMMITED.</p>


				+</li>


				+


				+</ul>


				+<p>


				+If leader election terminates erroneously, we don't have a problem since the


				+NEW_LEADER proposal will not be committed since the leader will not have quorum.


				+When this happens, the leader and any remaining followers will timeout and go back


				+to leader election.


				+</p>


				+<a name="N100F7"></a><a name="sc_activeMessaging"></a>


				+<h3 class="h4">Active Messaging</h3>


				+<p>


				+Leader Activation does all the heavy lifting. Once the leader is coronated he can


				+start blasting out proposals. As long as he remains the leader no other leader can


				+emerge since no other leader will be able to get a quorum of followers. If a new


				+leader does emerge,


				+it means that the leader has lost quorum, and the new leader will clean up any


				+mess left over during her leadership activation.


				+</p>


				+<p>ZooKeeper messaging operates similar to a classic two-phase commit.</p>


				+<img alt="" src="images/2pc.png"><p>


				+All communication channels are FIFO, so everything is done in order. Specifically


				+the following operating constraints are observed:</p>


				+<ul>


				+


				+


				+<li>


				+<p>The leader sends proposals to all followers using


				+the same order. Moreover, this order follows the order in which requests have been


				+received. Because we use FIFO channels this means that followers also receive proposals in order.


				+</p>


				+</li>


				+


				+


				+<li>


				+<p>Followers process messages in the order they are received. This


				+means that messages will be ACKed in order and the leader will receive ACKs from


				+followers in order, due to the FIFO channels. It also means that if message $m$


				+has been written to non-volatile storage, all messages that were proposed before


				+$m$ have been written to non-volatile storage.</p>


				+</li>


				+


				+


				+<li>


				+<p>The leader will issue a COMMIT to all followers as soon as a


				+quorum of followers have ACKed a message. Since messages are ACKed in order,


				+COMMITs will be sent by the leader as received by the followers in order.</p>


				+</li>


				+


				+


				+<li>


				+<p>COMMITs are processed in order. Followers deliver a proposals


				+message when that proposal is committed.</p>


				+</li>


				+


				+


				+</ul>


				+<a name="N1011E"></a><a name="sc_summary"></a>


				+<h3 class="h4">Summary</h3>


				+<p>So there you go. Why does it work? Specifically, why does is set of proposals


				+believed by a new leader always contain any proposal that has actually been committed?


				+First, all proposals have a unique zxid, so unlike other protocols, we never have


				+to worry about two different values being proposed for the same zxid; followers


				+(a leader is also a follower) see and record proposals in order; proposals are


				+committed in order; there is only one active leader at a time since followers only


				+follow a single leader at a time; a new leader has seen all committed proposals


				+from the previous epoch since it has seen the highest zxid from a quorum of servers;


				+any uncommited proposals from a previous epoch seen by a new leader will be committed


				+by that leader before it becomes active.</p>


				+<a name="N10127"></a><a name="sc_comparisons"></a>


				+<h3 class="h4">Comparisons</h3>


				+<p>


				+Isn't this just Multi-Paxos? No, Multi-Paxos requires some way of assuring that


				+there is only a single coordinator. We do not count on such assurances. Instead


				+we use the leader activation to recover from leadership change or old leaders


				+believing they are still active.


				+</p>


				+<p>


				+Isn't this just Paxos? Your active messaging phase looks just like phase 2 of Paxos?


				+Actually, to us active messaging looks just like 2 phase commit without the need to


				+handle aborts. Active messaging is different from both in the sense that it has


				+cross proposal ordering requirements. If we do not maintain strict FIFO ordering of


				+all packets, it all falls apart. Also, our leader activation phase is different from


				+both of them. In particular, our use of epochs allows us to skip blocks of uncommitted


				+proposals and to not worry about duplicate proposals for a given zxid.


				+</p>


				+</div>


				+


				+


				+


				+<a name="N10134"></a><a name="sc_logging"></a>


				+<h2 class="h3">Logging</h2>


				+<div class="section">


				+<p>


				+ZooKeeper uses


				+<a href="http://logging.apache.org/log4j">log4j</a>


				+version 1.2 as its logging infrastructure. For information on configuring log4j for


				+ZooKeeper, see the <a href="zookeeperAdmin.html#sc_logging">Logging</a> section


				+of the <a href="zookeeperAdmin.html">ZooKeeper Administrator's Guide.</a>


				+


				+</p>


				+<a name="N10149"></a><a name="sc_developerGuidelines"></a>


				+<h3 class="h4">Developer Guidelines</h3>


				+<p>Please follow these guidelines when submitting code. Patch reviewers will look for the following:</p>


				+<a name="N10151"></a><a name="sc_rightLevel"></a>


				+<h4>Logging at the Right Level</h4>


				+<p>


				+There are <a href="http://logging.apache.org/log4j/1.2/apidocs/org/apache/log4j/Level.html#FATAL">6 levels of logging in log4j</a>.


				+It's important to pick the right one. In order of higher to lower severity:</p>


				+<ol>


				+


				+<li>


				+<p> FATAL level designates very severe error events that will presumably lead the application to abort</p>


				+</li>


				+


				+<li>


				+<p>ERROR level designates error events that might still allow the application to continue running.</p>


				+</li>


				+


				+<li>


				+<p>WARN level designates potentially harmful situations.</p>


				+</li>


				+


				+<li>


				+<p>INFO level designates informational messages that highlight the progress of the application at coarse-grained level.</p>


				+</li>


				+


				+<li>


				+<p>EBUG Level designates fine-grained informational events that are most useful to debug an application.</p>


				+</li>


				+


				+<li>


				+<p>TRACE Level designates finer-grained informational events than the DEBUG.</p>


				+</li>


				+


				+</ol>


				+<p>


				+ZooKeeper is typically run in production such that log messages of INFO level


				+severity and higher (more severe) are output to the log.</p>


				+<a name="N1017C"></a><a name="sc_log4jIdioms"></a>


				+<h4>Use of Standard log4j Idioms</h4>


				+<p>


				+<em>Static Message Logging</em>


				+</p>


				+<pre class="code">


				+LOG.debug("process completed successfully!");


				+</pre>


				+<p>However when creating a message from a number of components (string


				+concatenation), the log call should be wrapped with a "isXEnabled()" call. this


				+eliminates the string concatenation overhead when debug level logging is not enabled.


				+</p>


				+<pre class="code">


				+if (LOG.isDebugEnabled()) {


				+    LOG.debug("got " + count + " messages in " + time + " minutes");


				+}


				+</pre>


				+<p>


				+<em>Naming</em>


				+</p>


				+<p>


				+Loggers should be named after the class in which they are used. (See the


				+<a href="http://logging.apache.org/log4j/1.2/faq.html#2.4">log4j faq</a>


				+for reasons why this is a good idea.)


				+</p>


				+<pre class="code">


				+public class Foo {


				+    private static final Logger LOG = Logger.getLogger(Foo.class);


				+    ....


				+    public Foo() {


				+       LOG.info("constructing Foo");


				+</pre>


				+<p>


				+<em>Exception handling</em>


				+</p>


				+<pre class="code">


				+try {


				+  // code


				+} catch (XYZException e) {


				+  // do this


				+  LOG.error("Something bad happened", e);


				+  // don't do this (generally)


				+  // LOG.error(e);


				+  // why? because "don't do" case hides the stack trace


				+


				+  // continue process here as you need... recover or (re)throw


				+}


				+</pre>


				+</div>


				+


				+


				+<p align="right">


				+<font size="-2"></font>


				+</p>


				+</div>


				+<!--+


				+    |end content


				+    +-->


				+<div class="clearboth">&nbsp;</div>


				+</div>


				+<div id="footer">


				+<!--+


				+    |start bottomstrip


				+    +-->


				+<div class="lastmodified">


				+<script type="text/javascript"><!--


				+document.write("Last Published: " + document.lastModified);


				+//  --></script>


				+</div>


				+<div class="copyright">


				+        Copyright &copy;


				+         2008 <a href="http://www.apache.org/licenses/">The Apache Software Foundation.</a>


				+</div>


				+<!--+


				+    |end bottomstrip


				+    +-->


				+</div>


				+</body>


				+</html>

--- a/docs/zookeeperInternals.pdf
+++ b/docs/zookeeperInternals.pdf
--- a/docs/zookeeperOtherInfo.html
+++ b/docs/zookeeperOtherInfo.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

--- a/docs/zookeeperOver.html
+++ b/docs/zookeeperOver.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

--- a/docs/zookeeperProgrammers.html
+++ b/docs/zookeeperProgrammers.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

--- a/docs/zookeeperStarted.html
+++ b/docs/zookeeperStarted.html
@@ -123,6 +123,15 @@ document.write("Last Published: " + document.lastModified);

				 <a href="zookeeperAdmin.html">Administrator's Guide</a>


				 </div>


				 <div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperTutorial.html">Barrie and Queue Tutorial</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				 <a href="api/index.html">API Docs</a>


				 </div>


				 <div class="menuitem">

@@ -216,18 +225,17 @@ document.write("Last Published: " + document.lastModified);

				 </div>


				 </div>


				 <p>Once you have downloaded the ZooKeeper source, cd to the root of


				-      your ZooKeeper source, and run "ant jar". For example:<span class="codefrag computeroutput">$ cd ~/dev/zookeeper


				-


				-$ ~/dev/zookeeper/: ant jar</span>


				-</p>


				+      your ZooKeeper source, and run "ant jar". For example:</p>


				+<pre class="code">


				+$ cd ~/dev/zookeeper


				+$ ~/dev/zookeeper/: ant jar


				+</pre>


				 <p>This should generate a JAR file called zookeeper.jar. To start


				-      Zookeeper, compile and run zookeeper.jar. <em>[tbd, some more


				-      instruction here. Perhaps a command line? Are these two steps or


				-      one?]</em>


				-</p>


				+      Zookeeper, compile and run zookeeper.jar.</p>


				 <p>To start ZooKeeper you need a configuration file. Here is a sample


				       file:</p>


				-<pre class="code">tickTime=2000


				+<pre class="code">


				+tickTime=2000


				 dataDir=/var/zookeeper/


				 clientPort=2181


				 </pre>

@@ -274,9 +282,7 @@ clientPort=2181

				 </dl>


				 <p>Now that you created the configuration file, you can start


				       ZooKeeper:</p>


				-<p>


				-<span class="codefrag computeroutput">java -cp zookeeper-dev.jar:java/lib/log4j-1.2.15.jar:conf org.apache.zookeeper.server.quorum.QuorumPeerMain zoo.cfg</span>


				-</p>


				+<pre class="code">java -cp zookeeper-dev.jar:java/lib/log4j-1.2.15.jar:conf org.apache.zookeeper.server.quorum.QuorumPeerMain zoo.cfg</pre>


				 <p>ZooKeeper logs messages using log4j -- more detail available in


				       the <a href="zookeeperProgrammers.html#Logging">Logging</a>


				       section of the Programmer's Guide.<em>[tbd:

@@ -288,7 +294,7 @@ clientPort=2181

				       replicated mode, please see <a href="#sc_RunningReplicatedZooKeeper">Running Replicated


				       Zookeeper</a>.</p>


				 <p></p>


				-<a name="N10076"></a><a name="sc_ConnectingToZooKeeper"></a>


				+<a name="N10072"></a><a name="sc_ConnectingToZooKeeper"></a>


				 <h3 class="h4">Connecting to ZooKeeper</h3>


				 <p>Once ZooKeeper is running, you have several option for connection


				       to it:</p>

@@ -312,7 +318,7 @@ clientPort=2181

				 <p>


				 <strong>C</strong>: compile cli_mt


				           (multi-threaded) or cli_st (single-threaded) by running


				-          <span class="codefrag command">_make cli_mt_</span> or <span class="codefrag command">_make cli_st_</span>


				+          <span class="codefrag command">make cli_mt</span> or <span class="codefrag command">make cli_st</span>


				           in the c subdirectory in the ZooKeeper sources.</p>







@@ -324,7 +330,7 @@ clientPort=2181

				 </li>





				 </ul>


				-<a name="N100A7"></a><a name="sc_ProgrammingToZooKeeper"></a>


				+<a name="N100A3"></a><a name="sc_ProgrammingToZooKeeper"></a>


				 <h3 class="h4">Programming to ZooKeeper</h3>


				 <p>ZooKeeper has a Java bindings and C bindings. They are


				       functionally equivalent. The C bindings exist in two variants: single

@@ -332,7 +338,7 @@ clientPort=2181

				       is done. For more information, see the <a href="zookeeperProgrammers.html#ch_programStructureWithExample.html">Programming


				       Examples in the Zookeeper Programmer's Guide</a> for


				       sample code using of the different APIs.</p>


				-<a name="N100B5"></a><a name="sc_RunningReplicatedZooKeeper"></a>


				+<a name="N100B1"></a><a name="sc_RunningReplicatedZooKeeper"></a>


				 <h3 class="h4">Running Replicated ZooKeeper</h3>


				 <p>Running ZooKeeper in standalone mode is convenient for evaluation,


				       some development, and testing. But in production, you should run

@@ -341,15 +347,16 @@ clientPort=2181

				       mode, all servers in the quorum have copies of the same configuration


				       file. The file is similar to the one used in standalone mode, but with a


				       few differences. Here is an example:</p>


				-<p>


				-<span class="codefrag computeroutput">tickTime=2000


				+<pre class="code">


				+tickTime=2000


				 dataDir=/var/zookeeper/


				 clientPort=2181


				 initLimit=5


				 syncLimit=2


				-server.1=zoo1:2888 server.2=zoo2:2888


				-server.3=zoo3:2888 </span>


				-</p>


				+server.1=zoo1:2888


				+server.2=zoo2:2888


				+server.3=zoo3:2888


				+</pre>


				 <p>The new entry, <strong>initLimit</strong> is


				       timeouts ZooKeeper uses to limit the length of time the Zookeeper


				       servers in quorum have to connect to a leader. The entry <strong>syncLimit</strong> limits how far out of date a server can

@@ -377,7 +384,7 @@ server.3=zoo3:2888 </span>




				 </div>


				 </div>


				-<a name="N100EC"></a><a name="Other+Optimizations"></a>


				+<a name="N100E6"></a><a name="Other+Optimizations"></a>


				 <h3 class="h4">Other Optimizations</h3>


				 <p>There are a couple of other configuration parameters that can


				       greatly increase performance:</p>

--- a/docs/zookeeperStarted.pdf
+++ b/docs/zookeeperStarted.pdf
--- a/docs/zookeeperTutorial.html
+++ b/docs/zookeeperTutorial.html
@@ -0,0 +1,857 @@

				+<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">


				+<html>


				+<head>


				+<META http-equiv="Content-Type" content="text/html; charset=UTF-8">


				+<meta content="Apache Forrest" name="Generator">


				+<meta name="Forrest-version" content="0.8">


				+<meta name="Forrest-skin-name" content="pelt">


				+<title>Programming with ZooKeeper - A basic tutorial</title>


				+<link type="text/css" href="skin/basic.css" rel="stylesheet">


				+<link media="screen" type="text/css" href="skin/screen.css" rel="stylesheet">


				+<link media="print" type="text/css" href="skin/print.css" rel="stylesheet">


				+<link type="text/css" href="skin/profile.css" rel="stylesheet">


				+<script src="skin/getBlank.js" language="javascript" type="text/javascript"></script><script src="skin/getMenu.js" language="javascript" type="text/javascript"></script><script src="skin/fontsize.js" language="javascript" type="text/javascript"></script>


				+<link rel="shortcut icon" href="images/favicon.ico">


				+</head>


				+<body onload="init()">


				+<script type="text/javascript">ndeSetTextSize();</script>


				+<div id="top">


				+<!--+


				+    |breadtrail


				+    +-->


				+<div class="breadtrail">


				+<a href="http://www.apache.org/">Apache</a> &gt; <a href="http://hadoop.apache.org/">Hadoop</a> &gt; <a href="http://hadoop.apache.org/zookeeper/">ZooKeeper</a><script src="skin/breadcrumbs.js" language="JavaScript" type="text/javascript"></script>


				+</div>


				+<!--+


				+    |header


				+    +-->


				+<div class="header">


				+<!--+


				+    |start group logo


				+    +-->


				+<div class="grouplogo">


				+<a href="http://hadoop.apache.org/"><img class="logoImage" alt="Hadoop" src="images/hadoop-logo.jpg" title="Apache Hadoop"></a>


				+</div>


				+<!--+


				+    |end group logo


				+    +-->


				+<!--+


				+    |start Project Logo


				+    +-->


				+<div class="projectlogo">


				+<a href="http://hadoop.apache.org/zookeeper/"><img class="logoImage" alt="ZooKeeper" src="images/zookeeper_small.gif" title="The Hadoop database"></a>


				+</div>


				+<!--+


				+    |end Project Logo


				+    +-->


				+<!--+


				+    |start Search


				+    +-->


				+<div class="searchbox">


				+<form action="http://www.google.com/search" method="get" class="roundtopsmall">


				+<input value="hadoop.apache.org" name="sitesearch" type="hidden"><input onFocus="getBlank (this, 'Search the site with google');" size="25" name="q" id="query" type="text" value="Search the site with google">&nbsp;


				+                    <input name="Search" value="Search" type="submit">


				+</form>


				+</div>


				+<!--+


				+    |end search


				+    +-->


				+<!--+


				+    |start Tabs


				+    +-->


				+<ul id="tabs">


				+<li>


				+<a class="unselected" href="http://hadoop.apache.org/zookeeper/">Project</a>


				+</li>


				+<li>


				+<a class="unselected" href="http://wiki.apache.org/hadoop/ZooKeeper">Wiki</a>


				+</li>


				+<li class="current">


				+<a class="selected" href="index.html">ZooKeeper Documentation</a>


				+</li>


				+</ul>


				+<!--+


				+    |end Tabs


				+    +-->


				+</div>


				+</div>


				+<div id="main">


				+<div id="publishedStrip">


				+<!--+


				+    |start Subtabs


				+    +-->


				+<div id="level2tabs"></div>


				+<!--+


				+    |end Endtabs


				+    +-->


				+<script type="text/javascript"><!--


				+document.write("Last Published: " + document.lastModified);


				+//  --></script>


				+</div>


				+<!--+


				+    |breadtrail


				+    +-->


				+<div class="breadtrail">


				+


				+             &nbsp;


				+           </div>


				+<!--+


				+    |start Menu, mainarea


				+    +-->


				+<!--+


				+    |start Menu


				+    +-->


				+<div id="menu">


				+<div onclick="SwitchMenu('menu_selected_1.1', 'skin/')" id="menu_selected_1.1Title" class="menutitle" style="background-image: url('skin/images/chapter_open.gif');">Documentation</div>


				+<div id="menu_selected_1.1" class="selectedmenuitemgroup" style="display: block;">


				+<div class="menuitem">


				+<a href="index.html">Welcome</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperOver.html">Zookeeper Overview</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperStarted.html">Getting Started</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperProgrammers.html">Programmer's Guide</a>


				+</div>


				+<div class="menuitem">


				+<a href="recipes.html">Recipes</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperAdmin.html">Administrator's Guide</a>


				+</div>


				+<div class="menuitem">


				+<a href="javaExample.html">Java Example</a>


				+</div>


				+<div class="menupage">


				+<div class="menupagetitle">Barrie and Queue Tutorial</div>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperInternals.html">ZooKeeper Internals</a>


				+</div>


				+<div class="menuitem">


				+<a href="api/index.html">API Docs</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://wiki.apache.org/hadoop/ZooKeeper">Wiki</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://wiki.apache.org/hadoop/ZooKeeper/FAQ">FAQ</a>


				+</div>


				+<div class="menuitem">


				+<a href="http://hadoop.apache.org/zookeeper/mailing_lists.html">Mailing Lists</a>


				+</div>


				+<div class="menuitem">


				+<a href="zookeeperOtherInfo.html">Other Info</a>


				+</div>


				+</div>


				+<div id="credit"></div>


				+<div id="roundbottom">


				+<img style="display: none" class="corner" height="15" width="15" alt="" src="skin/images/rc-b-l-15-1body-2menu-3menu.png"></div>


				+<!--+


				+  |alternative credits


				+  +-->


				+<div id="credit2"></div>


				+</div>


				+<!--+


				+    |end Menu


				+    +-->


				+<!--+


				+    |start content


				+    +-->


				+<div id="content">


				+<div title="Portable Document Format" class="pdflink">


				+<a class="dida" href="zookeeperTutorial.pdf"><img alt="PDF -icon" src="skin/images/pdfdoc.gif" class="skin"><br>


				+        PDF</a>


				+</div>


				+<h1>Programming with ZooKeeper - A basic tutorial</h1>


				+<div id="minitoc-area">


				+<ul class="minitoc">


				+<li>


				+<a href="#ch_Introduction">Introduction</a>


				+</li>


				+<li>


				+<a href="#sc_barriers">Barriers</a>


				+</li>


				+<li>


				+<a href="#sc_producerConsumerQueues">Producer-Consumer Queues</a>


				+</li>


				+<li>


				+<a href="#sc_sourceListing">Complete Source Listing</a>


				+</li>


				+</ul>


				+</div>


				+


				+


				+


				+


				+


				+<a name="N10009"></a><a name="ch_Introduction"></a>


				+<h2 class="h3">Introduction</h2>


				+<div class="section">


				+<p>In this tutorial, we show simple implementations of barriers and


				+    producer-consumer queues using ZooKeeper. We call the respective classes Barrier and Queue.


				+    These examples assume that you have at least one ZooKeeper server running.</p>


				+<p>Both primitives use the following common excerpt of code:</p>


				+<pre class="code">


				+static ZooKeeper zk = null;


				+static Integer mutex;


				+


				+String root;


				+


				+SyncPrimitive(String address) {


				+	if(zk == null){


				+	    try {


				+		System.out.println("Starting ZK:");


				+		zk = new ZooKeeper(address, 3000, this);


				+		mutex = new Integer(-1);


				+		System.out.println("Finished starting ZK: " + zk);


				+	    } catch (KeeperException e) {


				+		System.out.println("Keeper exception when starting new session: "


				+			+ e.toString());


				+		zk = null;


				+	    } catch (IOException e) {


				+		System.out.println(e.toString());


				+		zk = null;


				+	    }


				+	}


				+}


				+


				+synchronized public void process(WatcherEvent event) {


				+	synchronized (mutex) {


				+	    mutex.notify();


				+	}


				+}


				+


				+</pre>


				+<p>Both classes extend SyncPrimitive. In this way, we execute steps that are


				+common to all primitives in the constructor of SyncPrimitive. To keep the examples


				+simple, we create a ZooKeeper object the first time we instantiate either a barrier


				+object or a queue object, and we declare a static variable that is a reference


				+to this object. The subsequent instances of Barrier and Queue check whether a


				+ZooKeeper object exists. Alternatively, we could have the application creating a


				+ZooKeeper object and passing it to the constructor of Barrier and Queue.</p>


				+<p>


				+We use the process() method to process notifications triggered due to watches.


				+In the following discussion, we present code that sets watches. A watch is internal


				+structure that enables ZooKeeper to notify a client of a change to a node. For example,


				+if a client is waiting for other clients to leave a barrier, then it can set a watch and


				+wait for modifications to a particular node, which can indicate that it is the end of the wait.


				+This point becomes clear once we go over the examples.


				+</p>


				+</div>


				+


				+


				+<a name="N1001F"></a><a name="sc_barriers"></a>


				+<h2 class="h3">Barriers</h2>


				+<div class="section">


				+<p>


				+ A barrier is a primitive that enables a group of processes to synchronize the


				+ beginning and the end of a computation. The general idea of this implementation


				+ is to have a barrier node that serves the purpose of being a parent for individual


				+ process nodes. Suppose that we call the barrier node "/b1". Each process "p" then


				+ creates a node "/b1/p". Once enough processes have created their corresponding


				+ nodes, joined processes can start the computation.


				+ </p>


				+<p>In this example, each process instantiates a Barrier object, and its constructor takes as parameters:</p>


				+<ul>


				+<li>


				+<p>the address of a ZooKeeper server (e.g., "zoo1.foo.com:2181")</p>


				+</li>


				+


				+<li>


				+<p>the path of the barrier node on ZooKeeper (e.g., "/b1")</p>


				+</li>


				+


				+<li>


				+<p>the size of the group of processes</p>


				+</li>


				+


				+</ul>


				+<p>The constructor of Barrier passes the address of the Zookeeper server to the


				+constructor of the parent class. The parent class creates a ZooKeeper instance if


				+one does not exist. The constructor of Barrier then creates a


				+barrier node on ZooKeeper, which is the parent node of all process nodes, and


				+we call root (<strong>Note:</strong> This is not the ZooKeeper root "/").</p>


				+<pre class="code">


				+ /**


				+ * Barrier constructor


				+ *


				+ * @param address


				+ * @param name


				+ * @param size


				+ */


				+Barrier(String address, String name, int size) {


				+    super(address);


				+    this.root = name;


				+    this.size = size;


				+


				+    // Create barrier node


				+    if (zk != null) {


				+	try {


				+	    Stat s = zk.exists(root, false);


				+	    if (s == null) {


				+		zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+	    }


				+	} catch (KeeperException e) {


				+	    System.out.println("Keeper exception when instantiating queue: " + e.toString());


				+	} catch (InterruptedException e) {


				+	    System.out.println("Interrupted exception");


				+	}


				+    }


				+


				+    // My node name


				+    try {


				+	name = new String(InetAddress.getLocalHost().getCanonicalHostName().toString());


				+    } catch (UnknownHostException e) {


				+	System.out.println(e.toString());


				+    }


				+


				+}


				+</pre>


				+<p>


				+To enter the barrier, a process calls enter(). The process creates a node under


				+the root to represent it, using its host name to form the node name. It then wait


				+until enough processes have entered the barrier. A process does it by checking


				+the number of children the root node has with "getChildren()", and waiting for


				+notifications in the case it does not have enough. To receive a notification when


				+there is a change to the root node, a process has to set a watch, and does it


				+through the call to "getChildren()". In the code, we have that "getChildren()"


				+has two parameters. The first one states the node to read from, and the second is


				+a boolean flag that enables the process to set a watch. In the code the flag is true.


				+</p>


				+<pre class="code">


				+ /**


				+ * Join barrier


				+ *


				+ * @return


				+ * @throws KeeperException


				+ * @throws InterruptedException


				+ */


				+


				+boolean enter() throws KeeperException, InterruptedException{


				+    zk.create(root + "/" + name, new byte[0], Ids.OPEN_ACL_UNSAFE,


				+	    CreateFlags.EPHEMERAL);


				+    while (true) {


				+	synchronized (mutex) {


				+	    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+


				+	    if (list.size() &lt; size) {


				+		mutex.wait();


				+	    } else {


				+		return true;


				+	    }


				+	}


				+    }


				+}


				+</pre>


				+<p>


				+Note that enter() throws both KeeperException and InterruptedException, so it is


				+the reponsability of the application to catch and handle such exceptions.</p>


				+<p>


				+Once the computation is finished, a process calls leave() to leave the barrier.


				+First it deletes its corresponding node, and then it gets the children of the root


				+node. If there is at least one child, then it waits for a notification (obs: note


				+that the second parameter of the call to getChildren() is true, meaning that


				+ZooKeeper has to set a watch on the the root node). Upon reception of a notification,


				+it checks once more whether the root node has any child.</p>


				+<pre class="code">


				+ /**


				+ * Wait until all reach barrier


				+ *


				+ * @return


				+ * @throws KeeperException


				+ * @throws InterruptedException


				+ */


				+


				+boolean leave() throws KeeperException, InterruptedException{


				+    zk.delete(root + "/" + name, 0);


				+    while (true) {


				+	synchronized (mutex) {


				+	    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+		if (list.size() &gt; 0) {


				+		    mutex.wait();


				+		} else {


				+		    return true;


				+		}


				+	    }


				+	}


				+}


				+</pre>


				+</div>


				+


				+<a name="N10051"></a><a name="sc_producerConsumerQueues"></a>


				+<h2 class="h3">Producer-Consumer Queues</h2>


				+<div class="section">


				+<p>


				+A producer-consumer queue is a distributed data estructure thata group of processes


				+use to generate and consume items. Producer processes create new elements and add


				+them to the queue. Consumer processes remove elements from the list, and process them.


				+In this implementation, the elements are simple integers. The queue is represented


				+by a root node, and to add an element to the queue, a producer process creates a new node,


				+a child of the root node.


				+</p>


				+<p>


				+The following excerpt of code corresponds to the constructor of the object. As


				+with Barrier objects, it first calls the constructor of the parent class, SyncPrimitive,


				+that creates a ZooKeeper object if one doesn't exist. It then verifies if the root


				+node of the queue exists, and creates if it doesn't.


				+</p>


				+<pre class="code">


				+/**


				+ * Constructor of producer-consumer queue


				+ *


				+ * @param address


				+ * @param name


				+ */


				+Queue(String address, String name) {


				+    super(address);


				+    this.root = name;


				+    // Create ZK node name


				+    if (zk != null) {


				+	try {


				+	    Stat s = zk.exists(root, false);


				+	    if (s == null) {


				+		zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+	    }


				+	} catch (KeeperException e) {


				+	    System.out


				+		    .println("Keeper exception when instantiating queue: "


				+			    + e.toString());


				+	} catch (InterruptedException e) {


				+	    System.out.println("Interrupted exception");


				+	}


				+    }


				+}


				+ </pre>


				+<p>


				+A producer process calls "produce()" to add an element to the queue, and passes


				+an integer as an argument. To add an element to the queue, the method creates a


				+new node using "create()", and uses the SEQUENCE flag to instruct ZooKeeper to


				+append the value of the sequencer counter associated to the root node. In this way,


				+we impose a total order on the elements of the queue, thus guaranteeing that the


				+oldest element of the queue is the next one consumed.


				+</p>


				+<pre class="code">


				+/**


				+ * Add element to the queue.


				+ *


				+ * @param i


				+ * @return


				+ */


				+


				+boolean produce(int i) throws KeeperException, InterruptedException{


				+    ByteBuffer b = ByteBuffer.allocate(4);


				+    byte[] value;


				+


				+    // Add child with value i


				+    b.putInt(i);


				+    value = b.array();


				+    zk.create(root + "/element", value, Ids.OPEN_ACL_UNSAFE,


				+		CreateFlags.SEQUENCE);


				+


				+    return true;


				+}


				+</pre>


				+<p>


				+To consume an element, a consumer process obtains the children of the root node,


				+reads the node with smallest counter value, and returns the element. Note that


				+if there is a conflict, then one of the two contending processes won't be able to


				+delete the node and the delete operation will throw an exception.</p>


				+<p>


				+A call to getChildren() returns the list of children in lexicographic order.


				+As lexicographic order does not necessary follow the numerical order of the counter


				+values, we need to decide which element is the smallest. To decide which one has


				+the smallest counter value, we traverse the list, and remove the prefix "element"


				+from each one.</p>


				+<pre class="code">


				+/**


				+ * Remove first element from the queue.


				+ *


				+ * @return


				+ * @throws KeeperException


				+ * @throws InterruptedException


				+ */


				+int consume() throws KeeperException, InterruptedException{


				+    int retvalue = -1;


				+    Stat stat = null;


				+


				+    // Get the first element available


				+    while (true) {


				+	synchronized (mutex) {


				+	    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+	    if (list.size() == 0) {


				+		System.out.println("Going to wait");


				+		mutex.wait();


				+	    } else {


				+		Integer min = new Integer(list.get(0).substring(7));


				+		for(String s : list){


				+		    Integer tempValue = new Integer(s.substring(7));


				+		    if(tempValue &gt; min) min = tempValue;


				+		}


				+		System.out.println("Temporary value: " + root + "/element" + min);


				+		byte[] b = zk.getData(root + "/element" + min, false, stat);


				+		zk.delete(root + "/element" + min, 0);


				+		ByteBuffer buffer = ByteBuffer.wrap(b);


				+		retvalue = buffer.getInt();


				+


				+		return retvalue;


				+	    }


				+	}


				+    }


				+}


				+</pre>


				+</div>


				+


				+<a name="N1006F"></a><a name="sc_sourceListing"></a>


				+<h2 class="h3">Complete Source Listing</h2>


				+<div class="section">


				+<div class="note example">


				+<div class="label">SyncPrimitive.Java</div>


				+<div class="content">


				+


				+<title>SyncPrimitive.Java</title>


				+


				+<pre class="code">


				+package com.yahoo.SyncPrimitive;


				+


				+import java.io.IOException;


				+import java.net.InetAddress;


				+import java.net.UnknownHostException;


				+import java.nio.ByteBuffer;


				+import java.lang.InterruptedException;


				+import java.util.ArrayList;


				+import java.util.Random;


				+


				+import com.yahoo.zookeeper.Watcher;


				+import com.yahoo.zookeeper.data.Stat;


				+import com.yahoo.zookeeper.proto.WatcherEvent;


				+import com.yahoo.zookeeper.KeeperException;


				+import com.yahoo.zookeeper.ZooDefs.Ids;


				+import com.yahoo.zookeeper.ZooDefs.CreateFlags;


				+import com.yahoo.zookeeper.ZooKeeper;


				+


				+public class SyncPrimitive implements Watcher {


				+


				+    static ZooKeeper zk = null;


				+    static Integer mutex;


				+


				+    String root;


				+


				+    SyncPrimitive(String address) {


				+        if(zk == null){


				+            try {


				+                System.out.println("Starting ZK:");


				+                zk = new ZooKeeper(address, 3000, this);


				+                mutex = new Integer(-1);


				+                System.out.println("Finished starting ZK: " + zk);


				+            } catch (KeeperException e) {


				+                System.out.println("Keeper exception when starting new session: "


				+                        + e.toString());


				+                zk = null;


				+            } catch (IOException e) {


				+                System.out.println(e.toString());


				+                zk = null;


				+            }


				+        }


				+        //else mutex = new Integer(-1);


				+    }


				+


				+    synchronized public void process(WatcherEvent event) {


				+        synchronized (mutex) {


				+            //System.out.println("Process: " + event.getType());


				+            mutex.notify();


				+        }


				+    }


				+


				+    /**


				+     * Barrier


				+     */


				+    static public class Barrier extends SyncPrimitive {


				+        int size;


				+        String name;


				+


				+        /**


				+         * Barrier constructor


				+         *


				+         * @param address


				+         * @param name


				+         * @param size


				+         */


				+        Barrier(String address, String name, int size) {


				+            super(address);


				+            this.root = name;


				+            this.size = size;


				+


				+            // Create barrier node


				+            if (zk != null) {


				+                try {


				+                    Stat s = zk.exists(root, false);


				+                    if (s == null) {


				+                        zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+                    }


				+                } catch (KeeperException e) {


				+                    System.out


				+                            .println("Keeper exception when instantiating queue: "


				+                                    + e.toString());


				+                } catch (InterruptedException e) {


				+                    System.out.println("Interrupted exception");


				+                }


				+            }


				+


				+            // My node name


				+            try {


				+                name = new String(InetAddress.getLocalHost().getCanonicalHostName().toString());


				+            } catch (UnknownHostException e) {


				+                System.out.println(e.toString());


				+            }


				+


				+        }


				+


				+        /**


				+         * Join barrier


				+         *


				+         * @return


				+         * @throws KeeperException


				+         * @throws InterruptedException


				+         */


				+


				+        boolean enter() throws KeeperException, InterruptedException{


				+            zk.create(root + "/" + name, new byte[0], Ids.OPEN_ACL_UNSAFE,


				+                    CreateFlags.EPHEMERAL);


				+            while (true) {


				+                synchronized (mutex) {


				+                    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+


				+                    if (list.size() &lt; size) {


				+                        mutex.wait();


				+                    } else {


				+                        return true;


				+                    }


				+                }


				+            }


				+        }


				+


				+        /**


				+         * Wait until all reach barrier


				+         *


				+         * @return


				+         * @throws KeeperException


				+         * @throws InterruptedException


				+         */


				+


				+        boolean leave() throws KeeperException, InterruptedException{


				+            zk.delete(root + "/" + name, 0);


				+            while (true) {


				+                synchronized (mutex) {


				+                    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+                        if (list.size() &gt; 0) {


				+                            mutex.wait();


				+                        } else {


				+                            return true;


				+                        }


				+                    }


				+                }


				+        }


				+    }


				+


				+    /**


				+     * Producer-Consumer queue


				+     */


				+    static public class Queue extends SyncPrimitive {


				+


				+        /**


				+         * Constructor of producer-consumer queue


				+         *


				+         * @param address


				+         * @param name


				+         */


				+        Queue(String address, String name) {


				+            super(address);


				+            this.root = name;


				+            // Create ZK node name


				+            if (zk != null) {


				+                try {


				+                    Stat s = zk.exists(root, false);


				+                    if (s == null) {


				+                        zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+                    }


				+                } catch (KeeperException e) {


				+                    System.out


				+                            .println("Keeper exception when instantiating queue: "


				+                                    + e.toString());


				+                } catch (InterruptedException e) {


				+                    System.out.println("Interrupted exception");


				+                }


				+            }


				+        }


				+


				+        /**


				+         * Add element to the queue.


				+         *


				+         * @param i


				+         * @return


				+         */


				+


				+        boolean produce(int i) throws KeeperException, InterruptedException{


				+            ByteBuffer b = ByteBuffer.allocate(4);


				+            byte[] value;


				+


				+            // Add child with value i


				+            b.putInt(i);


				+            value = b.array();


				+            zk.create(root + "/element", value, Ids.OPEN_ACL_UNSAFE,


				+                        CreateFlags.SEQUENCE);


				+


				+            return true;


				+        }


				+


				+


				+        /**


				+         * Remove first element from the queue.


				+         *


				+         * @return


				+         * @throws KeeperException


				+         * @throws InterruptedException


				+         */


				+        int consume() throws KeeperException, InterruptedException{


				+            int retvalue = -1;


				+            Stat stat = null;


				+


				+            // Get the first element available


				+            while (true) {


				+                synchronized (mutex) {


				+                    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+                    if (list.size() == 0) {


				+                        System.out.println("Going to wait");


				+                        mutex.wait();


				+                    } else {


				+                        Integer min = new Integer(list.get(0).substring(7));


				+                        for(String s : list){


				+                            Integer tempValue = new Integer(s.substring(7));


				+                            //System.out.println("Temporary value: " + tempValue);


				+                            if(tempValue &lt; min) min = tempValue;


				+                        }


				+                        System.out.println("Temporary value: " + root + "/element" + min);


				+                        byte[] b = zk.getData(root + "/element" + min,


				+                                    false, stat);


				+                        zk.delete(root + "/element" + min, 0);


				+                        ByteBuffer buffer = ByteBuffer.wrap(b);


				+                        retvalue = buffer.getInt();


				+


				+                        return retvalue;


				+                    }


				+                }


				+            }


				+        }


				+    }


				+


				+    public static void main(String args[]) {


				+        if (args[0].equals("qTest"))


				+            queueTest(args);


				+        else


				+            barrierTest(args);


				+


				+    }


				+


				+    public static void queueTest(String args[]) {


				+        Queue q = new Queue(args[1], "/app1");


				+


				+        System.out.println("Input: " + args[1]);


				+        int i;


				+        Integer max = new Integer(args[2]);


				+


				+        if (args[3].equals("p")) {


				+            System.out.println("Producer");


				+            for (i = 0; i &lt; max; i++)


				+                try{


				+                    q.produce(10 + i);


				+                } catch (KeeperException e){


				+


				+                } catch (InterruptedException e){


				+


				+                }


				+        } else {


				+            System.out.println("Consumer");


				+


				+            for (i = 0; i &lt; max; i++) {


				+                try{


				+                    int r = q.consume();


				+                    System.out.println("Item: " + r);


				+                } catch (KeeperException e){


				+                    i--;


				+                } catch (InterruptedException e){


				+


				+                }


				+            }


				+        }


				+    }


				+


				+    public static void barrierTest(String args[]) {


				+        Barrier b = new Barrier(args[1], "/b1", new Integer(args[2]));


				+        try{


				+            boolean flag = b.enter();


				+            System.out.println("Entered barrier: " + args[2]);


				+            if(!flag) System.out.println("Error when entering the barrier");


				+        } catch (KeeperException e){


				+


				+        } catch (InterruptedException e){


				+


				+        }


				+


				+        // Generate random integer


				+        Random rand = new Random();


				+        int r = rand.nextInt(100);


				+        // Loop for rand iterations


				+        for (int i = 0; i &lt; r; i++) {


				+            try {


				+                Thread.sleep(100);


				+            } catch (InterruptedException e) {


				+


				+            }


				+        }


				+        try{


				+            b.leave();


				+        } catch (KeeperException e){


				+


				+        } catch (InterruptedException e){


				+


				+        }


				+        System.out.println("Left barrier");


				+    }


				+}</pre>


				+</div>


				+</div>


				+</div>


				+


				+


				+<p align="right">


				+<font size="-2"></font>


				+</p>


				+</div>


				+<!--+


				+    |end content


				+    +-->


				+<div class="clearboth">&nbsp;</div>


				+</div>


				+<div id="footer">


				+<!--+


				+    |start bottomstrip


				+    +-->


				+<div class="lastmodified">


				+<script type="text/javascript"><!--


				+document.write("Last Published: " + document.lastModified);


				+//  --></script>


				+</div>


				+<div class="copyright">


				+        Copyright &copy;


				+         2008 <a href="http://www.apache.org/licenses/">The Apache Software Foundation.</a>


				+</div>


				+<!--+


				+    |end bottomstrip


				+    +-->


				+</div>


				+</body>


				+</html>

--- a/docs/zookeeperTutorial.pdf
+++ b/docs/zookeeperTutorial.pdf
--- a/src/docs/src/documentation/content/xdocs/index.xml
+++ b/src/docs/src/documentation/content/xdocs/index.xml
@@ -38,6 +38,9 @@ The following documents provide concepts and procedures to get you started using

				       <li><a href="zookeeperProgrammers.html">Programmer's Guide</a> - an application developer's guide to ZooKeeper</li>


				       <li><a href="recipes.html">ZooKeeper Recipes</a> - a set of common, higher level solutions using ZooKeeper</li>


				       <li><a href="zookeeperAdmin.html">Administrator's Guide</a> - a guide for system administrators and anyone else who might deploy Zookeeer</li>


				+      <li><a href="javaExample.html">ZooKeeper Java Example</a> - A simple Zookeeer Client, written in Java</li>


				+      <li><a href="zookeeperTutorial.html">Barrier and Queue Tutorial</a> - Simple Implementations of Barriers and Queues</li>


				+      <li><a href="zookeeperInternals.html">ZooKeeper Internals</a> - Assorted Topics on the Inner Workings of ZooKeeper</li>


				       <li><a href="ext:api/index">API Docs</a> - the technical reference to ZooKeeper APIs</li>


				       <li><a href="ext:wiki">Wiki</a> - miscellaneous, informal ZooKeeper documentation, in Wiki format</li>


				       <li><a href="ext:faq">FAQ</a> - frequently asked questions</li>

--- a/src/docs/src/documentation/content/xdocs/javaExample.xml
+++ b/src/docs/src/documentation/content/xdocs/javaExample.xml
@@ -0,0 +1,672 @@

				+<?xml version="1.0" encoding="UTF-8"?>


				+<!--


				+  Copyright 2002-2004 The Apache Software Foundation


				+


				+  Licensed under the Apache License, Version 2.0 (the "License");


				+  you may not use this file except in compliance with the License.


				+  You may obtain a copy of the License at


				+


				+      http://www.apache.org/licenses/LICENSE-2.0


				+


				+  Unless required by applicable law or agreed to in writing, software


				+  distributed under the License is distributed on an "AS IS" BASIS,


				+  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.


				+  See the License for the specific language governing permissions and


				+  limitations under the License.


				+-->


				+


				+<!DOCTYPE article PUBLIC "-//OASIS//DTD Simplified DocBook XML V1.0//EN"


				+"http://www.oasis-open.org/docbook/xml/simple/1.0/sdocbook.dtd">


				+<article id="ar_JavaExample">


				+  <title>ZooKeeper Java Example</title>


				+


				+  <articleinfo>


				+    <legalnotice>


				+      <para>Licensed under the Apache License, Version 2.0 (the "License");


				+      you may not use this file except in compliance with the License. You may


				+      obtain a copy of the License at <ulink


				+      url="http://www.apache.org/licenses/LICENSE-2.0">http://www.apache.org/licenses/LICENSE-2.0</ulink>.</para>


				+


				+      <para>Unless required by applicable law or agreed to in writing,


				+      software distributed under the License is distributed on an "AS IS"


				+      BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or


				+      implied. See the License for the specific language governing permissions


				+      and limitations under the License.</para>


				+    </legalnotice>


				+


				+    <abstract>


				+      <para>This article contains sample Java code for a simple watch client.</para>


				+


				+    </abstract>


				+  </articleinfo>


				+


				+  <section id="ch_Introduction">


				+    <title>A Simple Watch Client</title>


				+


				+    <para>To introduce you to the ZooKeeper Java API, we develop here a very simple


				+    watch client. This ZooKeeper client watches a ZooKeeper node for changes


				+    and responds to by starting or stopping a program.</para>


				+


				+    <section id="sc_requirements"><title>Requirements</title>


				+


				+    <para>The client has four requirements:</para>


				+


				+    <itemizedlist><listitem><para>It takes as parameters:</para>


				+    	<itemizedlist>


				+		<listitem><para>the address of the ZooKeeper service</para></listitem>


				+		<listitem> <para> a znode, by name</para></listitem>


				+		<listitem><para> an executable with arguments.</para></listitem></itemizedlist></listitem>


				+	<listitem><para>It fetches the data associated with the znode and starts the executable.</para></listitem>


				+	<listitem><para>If the znode changes, the client refetches the contents and restarts the executable.</para></listitem>


				+	<listitem><para>If the znode disappears, the client kills the executable.</para></listitem></itemizedlist>


				+


				+   </section>


				+


				+   <section id="sc_design">


				+   	<title>Program Design</title>


				+


				+   <para>Conventionally, ZooKeeper applications are broken into two units, one which maintains the connection,


				+   and the other which monitors data.  In this application, the class called the <emphasis role="bold">Executor</emphasis>


				+   maintains the ZooKeeper connection, and the class called the  <emphasis role="bold">DataMonitor</emphasis> monitors the data


				+   in the ZooKeeper tree. Also, Executor contains the main thread and contains the execution logic.


				+   It is responsible for what little user interaction there is, as well as interaction with the exectuable program you


				+   pass in as an argument and which the sample (per the requirements) shuts down and restarts, according to the


				+   state of the znode.</para>


				+


				+   </section>


				+


				+   </section>


				+


				+   <section id="sc_executor"><title>The Executor Class</title>


				+    <para>The Executor object is the primary container of the sample application. It contains


				+    both the <emphasis role="bold">ZooKeeper</emphasis> object, <emphasis role="bold">DataMonitor</emphasis>, as described above in


				+    <xref linkend="sc_design"/>.  </para>


				+


				+    <programlisting>


				+// from the Executor class...


				+


				+public static void main(String[] args) {


				+    if (args.length &lt; 4) {


				+        System.err


				+                .println("USAGE: Executor hostPort znode filename program [args ...]");


				+        System.exit(2);


				+    }


				+    String hostPort = args[0];


				+    String znode = args[1];


				+    String filename = args[2];


				+    String exec[] = new String[args.length - 3];


				+    System.arraycopy(args, 3, exec, 0, exec.length);


				+    try {


				+        Executor theExectutor = new Executor(hostPort, znode, filename, exec);


				+	theExectutor.run();


				+    } catch (Exception e) {


				+        e.printStackTrace();


				+    }


				+}


				+


				+public Executor(String hostPort, String znode, String filename,


				+    String exec[]) throws KeeperException, IOException {


				+    this.filename = filename;


				+    this.exec = exec;


				+


				+    //create a new zookeeper object, passing a self-reference in a the Watcher


				+    zk = new ZooKeeper(hostPort, 3000, this);


				+    dm = new DataMonitor(zk, znode, null, this);


				+}


				+


				+public void run() {


				+    try {


				+        synchronized (this) {


				+            while (!dm.dead) {


				+                wait();


				+            }


				+        }


				+    } catch (InterruptedException e) {


				+    }


				+}


				+</programlisting>


				+


				+


				+    <para>


				+    Recall that the Executor's job is to starts and stop the executable whose name you pass in on the command line.


				+    It does this in response to events fired by the ZooKeeper object. As you can see in the code above, the Executor passes


				+    a reference to itself as the Watcher argument in the ZooKeeper constructor. It also passes a reference to itself


				+    as DataMonitorListener argument to the DataMonitor constructor. Per the Executor's definition, it implements both these


				+    interfaces:


				+    </para>


				+


				+    <programlisting>


				+public class Executor implements Watcher, Runnable, DataMonitorListener {


				+...


				+    </programlisting>


				+


				+    <para>The <emphasis role="bold">Watcher</emphasis> interface is defined by the ZooKeeper Java API.


				+    ZooKeeper uses it to communicate back to its container. It supports only one method, <command>process()</command>, and ZooKeeper uses


				+    it to communciates generic events that the main thread would be intersted in, such as the state of the ZooKeeper connection or the ZooKeeper session.The Executor


				+    in this example simply forwards those events down to the DataMonitor to decide what to do with them. It does this simply to illustrate


				+    the point that, by convention, the Executor or some Executor-like object "owns" the ZooKeeper connection, but it is free to delegate the events to other


				+    events to other objects. It also uses this as the default channel on which to fire watch events. (More on this later.)</para>


				+


				+<programlisting>


				+public void process(WatcherEvent event) {


				+    dm.process(event);


				+}


				+</programlisting>


				+


				+    <para>The <emphasis role="bold">DataMonitorListener</emphasis>


				+    interface, on the other hand, is not part of the the ZooKeeper API. It is a completely custom interface,


				+    designed for this sample application. The DataMonitor object uses it to communicate back to its container, which


				+    is also the the Executor object.The DataMonitorListener interface looks like this:</para>


				+    <programlisting>


				+public interface DataMonitorListener {


				+    /**


				+    * The existence status of the node has changed.


				+    */


				+    void exists(byte data[]);


				+


				+    /**


				+    * The ZooKeeper session is no longer valid.


				+    *


				+    * @param rc


				+    * the ZooKeeper reason code


				+    */


				+    void closing(int rc);


				+}


				+</programlisting>


				+    <para>This interface is defined in the DataMonitor class and implemented in the Executor class.


				+    When <command>Executor.exists()</command> is invoked,


				+    the Executor decides whether to start up or shut down per the requirements. Recall that the requires say to kill the executable when the


				+    znode ceases to <emphasis>exist</emphasis>. </para>


				+


				+    <para>When <command>Executor.closing()</command>


				+    is invoked, the Executor decides whether or not to shut itself down in response to the ZooKeeper connection permanently disappearing.</para>


				+


				+    <para>As you might have guessed, DataMonitor is the object that invokes


				+    these methods, in response to changes in ZooKeeper's state.</para>


				+


				+    <para>Here are Executor's implementation of


				+    <command>DataMonitorListener.exists()</command> and <command>DataMonitorListener.closing</command>:


				+    </para>


				+    <programlisting>


				+public void exists( byte[] data ) {


				+    if (data == null) {


				+        if (child != null) {


				+            System.out.println("Killing process");


				+            child.destroy();


				+            try {


				+                child.waitFor();


				+            } catch (InterruptedException e) {


				+            }


				+        }


				+        child = null;


				+    } else {


				+        if (child != null) {


				+            System.out.println("Stopping child");


				+            child.destroy();


				+            try {


				+               child.waitFor();


				+            } catch (InterruptedException e) {


				+            e.printStackTrace();


				+            }


				+        }


				+        try {


				+            FileOutputStream fos = new FileOutputStream(filename);


				+            fos.write(data);


				+            fos.close();


				+        } catch (IOException e) {


				+            e.printStackTrace();


				+        }


				+        try {


				+            System.out.println("Starting child");


				+            child = Runtime.getRuntime().exec(exec);


				+            new StreamWriter(child.getInputStream(), System.out);


				+            new StreamWriter(child.getErrorStream(), System.err);


				+        } catch (IOException e) {


				+            e.printStackTrace();


				+        }


				+    }


				+}


				+


				+public void closing(int rc) {


				+    synchronized (this) {


				+        notifyAll();


				+    }


				+}


				+</programlisting>


				+


				+</section>


				+<section id="sc_DataMonitor"><title>The DataMonitor Class</title>


				+<para>


				+The DataMonitor class has the meat of the ZooKeeper logic. It is mostly


				+asynchronous and event driven. DataMonitor kicks things off in the constructor with:</para>


				+<programlisting>


				+public DataMonitor(ZooKeeper zk, String znode, Watcher chainedWatcher,


				+        DataMonitorListener listener) {


				+    this.zk = zk;


				+    this.znode = znode;


				+    this.chainedWatcher = chainedWatcher;


				+    this.listener = listener;


				+


				+    // Get things started by checking if the node exists. We are going


				+    // to be completely event driven


				+    <emphasis role="bold">zk.exists(znode, true, this, null);</emphasis>


				+}


				+</programlisting>


				+


				+<para>The call to <command>ZooKeeper.exists()</command> checks for the existence of the znode,


				+sets a watch, and passes a reference to itself (<command>this</command>)


				+as the completion callback object. In this sense, it kicks things off, since the


				+real processing happens when the watch is triggered.</para>


				+


				+<note>


				+<para>Don't confuse the completion callback with the watch callback. The <command>ZooKeeper.exists()</command>


				+completion callback, which happens to be the method <command>StatCallback.processResult()</command> implemented


				+in the DataMonitor object, is invoked when the asynchronous <emphasis>setting of the watch</emphasis> operation


				+(by <command>ZooKeeper.exists()</command>) completes on the server. </para>


				+<para>


				+The triggering of the watch, on the other hand, sends an event to the <emphasis>Executor</emphasis> object, since


				+the Executor registered as the Watcher of the ZooKeeper object.</para>


				+


				+<para>As an aside, you might note that the DataMonitor could also register itself as the Watcher


				+for this particular watch event. This is new to ZooKeeper 3.0.0 (the support of multiple Watchers). In this


				+example, however, DataMonitor does not register as the Watcher.</para>


				+</note>


				+


				+<para>When the <command>ZooKeeper.exists()</command> operation completes on the server, the ZooKeeper API invokes this completion callback on


				+the client:</para>


				+


				+<programlisting>


				+public void processResult(int rc, String path, Object ctx, Stat stat) {


				+    boolean exists;


				+    switch (rc) {


				+    case Code.Ok:


				+        exists = true;


				+        break;


				+    case Code.NoNode:


				+        exists = false;


				+        break;


				+    case Code.SessionExpired:


				+    case Code.NoAuth:


				+        dead = true;


				+        listener.closing(rc);


				+        return;


				+    default:


				+        // Retry errors


				+        zk.exists(znode, true, this, null);


				+        return;


				+    }


				+


				+    byte b[] = null;


				+    if (exists) {


				+        try {


				+            <emphasis role="bold">b = zk.getData(znode, false, null);</emphasis>


				+        } catch (KeeperException e) {


				+            // We don't need to worry about recovering now. The watch


				+            // callbacks will kick off any exception handling


				+            e.printStackTrace();


				+        } catch (InterruptedException e) {


				+            return;


				+        }


				+    }


				+    if ((b == null &amp;&amp; b != prevData)


				+            || (b != null &amp;&amp; !Arrays.equals(prevData, b))) {


				+        <emphasis role="bold">listener.exists(b);</emphasis>


				+        prevData = b;


				+    }


				+}


				+</programlisting>


				+


				+<para>


				+The code first checks the error codes for znode existence, fatal errors, and


				+recoverable errors. If the file (or znode) exists, it gets the data from the znode, and


				+then invoke the exists() callback of Executor if the state has changed. Note,


				+it doesn't have to do any Exception processing for the getData call because it


				+has watches pending for anything that could cause an error: if the node is deleted


				+before it calls <command>ZooKeeper.getData()</command>, the watch event set by


				+the <command>ZooKeeper.exists()</command> triggers a callback;


				+if there is a communication error, a connection watch event fires when


				+the connection comes back up.


				+</para>


				+


				+<para>Finally, notice how DataMonitor processes watch events: </para>


				+<programlisting>


				+public void process(WatcherEvent event) {


				+    String path = event.getPath();


				+    if (event.getType() == Watcher.Event.EventNone) {


				+        // We are are being told that the state of the


				+        // connection has changed


				+        switch (event.getState()) {


				+        case Event.KeeperStateSyncConnected:


				+            // Everything is happy. Lets kick things off


				+            // again by checking the existence of the znode


				+            zk.exists(znode, true, this, null);


				+            break;


				+        case Event.KeeperStateExpired:


				+            // It's all over


				+            dead = true;


				+            listener.closing(KeeperException.Code.SessionExpired);


				+            break;


				+        }


				+    } else {


				+        if (path != null &amp;&amp; path.equals(znode)) {


				+            // Something has changed on the node, let's find out


				+            zk.exists(znode, true, this, null);


				+        }


				+   }


				+   if (chainedWatcher != null) {


				+        chainedWatcher.process(event);


				+   }


				+}


				+</programlisting>


				+<para>


				+If the client-side ZooKeeper libraries can reestablish the communication channel to ZooKeeper, DataMonitor simply kicks


				+everything off again with the call to <command>ZooKeeper.exists()</command>.


				+If it gets an event for a znode, it calls <command>ZooKeeper.exists()</command> to find out what has changed.


				+</para>


				+</section>


				+


				+<section id="sc_completeSourceCode">


				+	<title>Complete Source Listings</title>


				+	<example id="eg_Executor_java"><title>Executor.java</title><programlisting>


				+/**


				+ * A simple example program to use DataMonitor to start and


				+ * stop executables based on a znode. The program watches the


				+ * specified znode and saves the data that corresponds to the


				+ * znode in the filesystem. It also starts the specified program


				+ * with the specified arguments when the znode exists and kills


				+ * the program if the znode goes away.


				+ */


				+package com.yahoo.zk.executor;


				+


				+import java.io.FileOutputStream;


				+import java.io.IOException;


				+import java.io.InputStream;


				+import java.io.OutputStream;


				+


				+import com.yahoo.zk.executor.DataMonitor.DataMonitorListener;


				+import com.yahoo.zookeeper.KeeperException;


				+import com.yahoo.zookeeper.Watcher;


				+import com.yahoo.zookeeper.ZooKeeper;


				+import com.yahoo.zookeeper.proto.WatcherEvent;


				+


				+public class Executor implements Watcher, Runnable, DataMonitorListener {


				+    String znode;


				+


				+    DataMonitor dm;


				+


				+    ZooKeeper zk;


				+


				+    String filename;


				+


				+    String exec[];


				+


				+    Process child;


				+


				+    public Executor(String hostPort, String znode, String filename,


				+            String exec[]) throws KeeperException, IOException {


				+        this.filename = filename;


				+        this.exec = exec;


				+        zk = new ZooKeeper(hostPort, 3000, this);


				+        dm = new DataMonitor(zk, znode, null, this);


				+    }


				+


				+    /**


				+     * @param args


				+     */


				+    public static void main(String[] args) {


				+        if (args.length &lt; 4) {


				+            System.err


				+                    .println("USAGE: Executor hostPort znode filename program [args ...]");


				+            System.exit(2);


				+        }


				+        String hostPort = args[0];


				+        String znode = args[1];


				+        String filename = args[2];


				+        String exec[] = new String[args.length - 3];


				+        System.arraycopy(args, 3, exec, 0, exec.length);


				+        try {


				+            new Executor(hostPort, znode, filename, exec).run();


				+        } catch (Exception e) {


				+            e.printStackTrace();


				+        }


				+    }


				+


				+    /***************************************************************************


				+     * We do process any events ourselves, we just need to forward them on.


				+     *


				+     * @see com.yahoo.zookeeper.Watcher#process(com.yahoo.zookeeper.proto.WatcherEvent)


				+     */


				+    @Override


				+    public void process(WatcherEvent event) {


				+        dm.process(event);


				+    }


				+


				+    @Override


				+    public void run() {


				+        try {


				+            synchronized (this) {


				+                while (!dm.dead) {


				+                    wait();


				+                }


				+            }


				+        } catch (InterruptedException e) {


				+        }


				+    }


				+


				+    @Override


				+    public void closing(int rc) {


				+        synchronized (this) {


				+            notifyAll();


				+        }


				+    }


				+


				+    static class StreamWriter extends Thread {


				+        OutputStream os;


				+


				+        InputStream is;


				+


				+        StreamWriter(InputStream is, OutputStream os) {


				+            this.is = is;


				+            this.os = os;


				+            start();


				+        }


				+


				+        public void run() {


				+            byte b[] = new byte[80];


				+            int rc;


				+            try {


				+                while ((rc = is.read(b)) > 0) {


				+                    os.write(b, 0, rc);


				+                }


				+            } catch (IOException e) {


				+            }


				+


				+        }


				+    }


				+


				+    @Override


				+    public void exists(byte[] data) {


				+        if (data == null) {


				+            if (child != null) {


				+                System.out.println("Killing process");


				+                child.destroy();


				+                try {


				+                    child.waitFor();


				+                } catch (InterruptedException e) {


				+                }


				+            }


				+            child = null;


				+        } else {


				+            if (child != null) {


				+                System.out.println("Stopping child");


				+                child.destroy();


				+                try {


				+                    child.waitFor();


				+                } catch (InterruptedException e) {


				+                    e.printStackTrace();


				+                }


				+            }


				+            try {


				+                FileOutputStream fos = new FileOutputStream(filename);


				+                fos.write(data);


				+                fos.close();


				+            } catch (IOException e) {


				+                e.printStackTrace();


				+            }


				+            try {


				+                System.out.println("Starting child");


				+                child = Runtime.getRuntime().exec(exec);


				+                new StreamWriter(child.getInputStream(), System.out);


				+                new StreamWriter(child.getErrorStream(), System.err);


				+            } catch (IOException e) {


				+                e.printStackTrace();


				+            }


				+        }


				+    }


				+}


				+</programlisting>


				+


				+</example>


				+


				+<example id="eg_DataMonitor_java">


				+	<title>DataMonitor.java</title>


				+	<programlisting>


				+/**


				+ * A simple class that monitors the data and existence of a ZooKeeper


				+ * node. It uses asynchronous ZooKeeper APIs.


				+ */


				+package com.yahoo.zk.executor;


				+


				+import java.util.Arrays;


				+


				+import com.yahoo.zookeeper.KeeperException;


				+import com.yahoo.zookeeper.Watcher;


				+import com.yahoo.zookeeper.ZooKeeper;


				+import com.yahoo.zookeeper.AsyncCallback.StatCallback;


				+import com.yahoo.zookeeper.KeeperException.Code;


				+import com.yahoo.zookeeper.data.Stat;


				+import com.yahoo.zookeeper.proto.WatcherEvent;


				+


				+public class DataMonitor implements Watcher, StatCallback {


				+


				+    ZooKeeper zk;


				+


				+    String znode;


				+


				+    Watcher chainedWatcher;


				+


				+    boolean dead;


				+


				+    DataMonitorListener listener;


				+


				+    byte prevData[];


				+


				+    public DataMonitor(ZooKeeper zk, String znode, Watcher chainedWatcher,


				+            DataMonitorListener listener) {


				+        this.zk = zk;


				+        this.znode = znode;


				+        this.chainedWatcher = chainedWatcher;


				+        this.listener = listener;


				+        // Get things started by checking if the node exists. We are going


				+        // to be completely event driven


				+        zk.exists(znode, true, this, null);


				+    }


				+


				+    /**


				+     * Other classes use the DataMonitor by implementing this method


				+     */


				+    public interface DataMonitorListener {


				+        /**


				+         * The existence status of the node has changed.


				+         */


				+        void exists(byte data[]);


				+


				+        /**


				+         * The ZooKeeper session is no longer valid.


				+         *


				+         * @param rc


				+         *                the ZooKeeper reason code


				+         */


				+        void closing(int rc);


				+    }


				+


				+    @Override


				+    /**


				+     * This is a watch event callback. The node we were watching has changed or


				+     * something happened to our connection to ZooKeeper.


				+     */


				+    public void process(WatcherEvent event) {


				+        String path = event.getPath();


				+        if (event.getType() == Watcher.Event.EventNone) {


				+            // We are are being told that the state of the


				+            // connection has changed


				+            switch (event.getState()) {


				+            case Event.KeeperStateSyncConnected:


				+                // Everything is happy. Lets kick things off


				+                // again by checking the existence of the znode


				+                zk.exists(znode, true, this, null);


				+                break;


				+            case Event.KeeperStateExpired:


				+                // It's all over


				+                dead = true;


				+                listener.closing(KeeperException.Code.SessionExpired);


				+                break;


				+            }


				+        } else {


				+            if (path != null &amp;&amp; path.equals(znode)) {


				+                // Something has changed on the node, let's find out


				+                zk.exists(znode, true, this, null);


				+            }


				+        }


				+        if (chainedWatcher != null) {


				+            chainedWatcher.process(event);


				+        }


				+    }


				+


				+    @Override


				+    public void processResult(int rc, String path, Object ctx, Stat stat) {


				+        boolean exists;


				+        switch (rc) {


				+        case Code.Ok:


				+            exists = true;


				+            break;


				+        case Code.NoNode:


				+            exists = false;


				+            break;


				+        case Code.SessionExpired:


				+        case Code.NoAuth:


				+            dead = true;


				+            listener.closing(rc);


				+            return;


				+        default:


				+            // Retry errors


				+            zk.exists(znode, true, this, null);


				+            return;


				+        }


				+


				+        byte b[] = null;


				+        if (exists) {


				+            try {


				+                b = zk.getData(znode, false, null);


				+            } catch (KeeperException e) {


				+                // We don't need to worry about recovering now. The watch


				+                // callbacks will kick off any exception handling


				+                e.printStackTrace();


				+            } catch (InterruptedException e) {


				+                return;


				+            }


				+        }


				+        if ((b == null &amp;&amp; b != prevData)


				+                || (b != null &amp;&amp; !Arrays.equals(prevData, b))) {


				+            listener.exists(b);


				+            prevData = b;


				+        }


				+    }


				+}


				+</programlisting>


				+</example>


				+</section>


				+


				+


				+


				+</article>

--- a/src/docs/src/documentation/content/xdocs/site.xml
+++ b/src/docs/src/documentation/content/xdocs/site.xml
@@ -38,6 +38,9 @@ See http://forrest.apache.org/docs/linking.html for more info.

				     <program   label="Programmer's Guide"     href="zookeeperProgrammers.html" />


				     <recipes   label="Recipes"		      href="recipes.html" />


				     <admin     label="Administrator's Guide"  href="zookeeperAdmin.html" />


				+    <javaEx    label="Java Example"     href="javaExample.html" />


				+    <barTutor  label="Barrie and Queue Tutorial" href="zookeeperTutorial.html" />


				+    <internals label="ZooKeeper Internals"	href="zookeeperInternals.html" />


				     <api       label="API Docs"               href="ext:api/index" />


				     <wiki      label="Wiki"                   href="ext:wiki" />


				     <faq       label="FAQ"                    href="ext:faq" />

--- a/src/docs/src/documentation/content/xdocs/zookeeperAdmin.xml
+++ b/src/docs/src/documentation/content/xdocs/zookeeperAdmin.xml
@@ -116,7 +116,6 @@

				           <para>Install the ZooKeeper Server Package. It can be downloaded


				             from:


				           </para>


				-


				           <para>


				             <ulink url="http://hadoop.apache.org/zookeeper/releases.html">


				               http://hadoop.apache.org/zookeeper/releases.html

@@ -312,7 +311,16 @@ server.3=zoo3:2888</computeroutput></para>

				     <section id="sc_logging">


				       <title>Logging</title>





				-      <para></para>


				+      <para>ZooKeeper uses <emphasis role="bold">log4j</emphasis> version 1.2 as


				+      its logging infrastructure. The  ZooKeeper default <filename>log4j.properties</filename>


				+      file resides in the <filename>conf</filename> directory. Log4j requires that


				+      <filename>log4j.properties</filename> either be in the working directory


				+      (the directory from which ZooKeeper is run) or be accessible from the classpath.</para>


				+


				+      <para>For more information, see


				+      <ulink url="http://logging.apache.org/log4j/1.2/manual.html#defaultInit">Log4j Default Initialization Procedure</ulink>


				+      of the log4j manual.</para>


				+


				     </section>





				     <section id="sc_troubleshooting">

--- a/src/docs/src/documentation/content/xdocs/zookeeperInternals.xml
+++ b/src/docs/src/documentation/content/xdocs/zookeeperInternals.xml
@@ -0,0 +1,447 @@

				+<?xml version="1.0" encoding="UTF-8"?>


				+<!--


				+  Copyright 2002-2004 The Apache Software Foundation


				+


				+  Licensed under the Apache License, Version 2.0 (the "License");


				+  you may not use this file except in compliance with the License.


				+  You may obtain a copy of the License at


				+


				+      http://www.apache.org/licenses/LICENSE-2.0


				+


				+  Unless required by applicable law or agreed to in writing, software


				+  distributed under the License is distributed on an "AS IS" BASIS,


				+  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.


				+  See the License for the specific language governing permissions and


				+  limitations under the License.


				+-->


				+


				+<!DOCTYPE article PUBLIC "-//OASIS//DTD Simplified DocBook XML V1.0//EN"


				+"http://www.oasis-open.org/docbook/xml/simple/1.0/sdocbook.dtd">


				+<article id="ar_ZooKeeperInternals">


				+  <title>ZooKeeper Internals</title>


				+


				+  <articleinfo>


				+    <legalnotice>


				+      <para>Licensed under the Apache License, Version 2.0 (the "License");


				+      you may not use this file except in compliance with the License. You may


				+      obtain a copy of the License at <ulink


				+      url="http://www.apache.org/licenses/LICENSE-2.0">http://www.apache.org/licenses/LICENSE-2.0</ulink>.</para>


				+


				+      <para>Unless required by applicable law or agreed to in writing,


				+      software distributed under the License is distributed on an "AS IS"


				+      BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or


				+      implied. See the License for the specific language governing permissions


				+      and limitations under the License.</para>


				+    </legalnotice>


				+


				+    <abstract>


				+      <para>This article contains topics which discuss the inner workings of


				+       ZooKeeper. So far, that's logging and atomic broadcast. </para>


				+


				+    </abstract>


				+  </articleinfo>


				+


				+  <section id="ch_Introduction">


				+    <title>Introduction</title>


				+


				+    <para>This document contains information on the inner workings of ZooKeeper.


				+    So far, it discusses these topics:


				+    </para>


				+


				+<itemizedlist>


				+<listitem><para><xref linkend="sc_atomicBroadcast"/></para></listitem>


				+<listitem><para><xref linkend="sc_logging"/></para></listitem>


				+</itemizedlist>


				+


				+</section>


				+


				+<section id="sc_atomicBroadcast">


				+<title>Atomic Broadcast</title>


				+


				+<para>


				+At the heart of ZooKeeper is an atomic messaging system that keeps all of the servers in sync.</para>


				+


				+<section id="sc_guaranteesPropertiesDefinitions"><title>Guarantees, Properties, and Definitions</title>


				+<para>


				+The specific guarantees provided by the messaging system used by ZooKeeper are the following:</para>


				+


				+<variablelist>


				+


				+<varlistentry><term><emphasis >Reliable delivery</emphasis></term>


				+<listitem><para>If a message, m, is delivered


				+by one server, it will be eventually delivered by all servers.</para></listitem></varlistentry>


				+


				+<varlistentry><term><emphasis >Total order</emphasis></term>


				+<listitem><para> If a message is


				+delivered before message b by one server, a will be delivered before b by all


				+servers. If a and b are delivered messages, either a will be delivered before b


				+or b will be delivered before a.</para></listitem></varlistentry>


				+


				+<varlistentry><term><emphasis >Causal order</emphasis> </term>


				+


				+<listitem><para>


				+If a message b is sent after a message a has been delivered by the sender of b,


				+a must be ordered before b. If a sender sends c after sending b, c must be ordered after b.


				+</para></listitem></varlistentry>


				+


				+</variablelist>


				+


				+


				+<para>


				+The ZooKeeper messaging system also needs to be efficient, reliable, and easy to


				+implement and maintain. We make heavy use of messaging, so we need the system to


				+be able to handle thousands of requests per second. Although we can require at


				+least k+1 correct servers to send new messages, we must be able to recover from


				+correlated failures such as power outages. When we implemented the system we had


				+little time and few engineering resources, so we needed a protocol that is


				+accessible to engineers and is easy to implement. We found that our protocol


				+satisfied all of these goals.


				+


				+</para>


				+


				+<para>


				+Our protocol assumes that we can construct point-to-point FIFO channels between


				+the servers. While similar services usually assume message delivery that can


				+lose or reorder messages, our assumption of FIFO channels is very practical


				+given that we use TCP for communication. Specifically we rely on the following property of TCP:</para>


				+


				+<variablelist>


				+


				+<varlistentry>


				+<term><emphasis >Ordered delivery</emphasis></term>


				+<listitem><para>Data is delivered in the same order it is sent and a message m is


				+delivered only after all messages sent before m have been delivered.


				+(The corollary to this is that if message m is lost all messages after m will be lost.)</para></listitem></varlistentry>


				+


				+<varlistentry><term><emphasis >No message after close</emphasis></term>


				+<listitem><para>Once a FIFO channel is closed, no messages will be received from it.</para></listitem></varlistentry>


				+


				+</variablelist>


				+


				+<para>


				+FLP proved that consensus cannot be achieved in asynchronous distributed systems


				+if failures are possible. To ensure we achieve consensus in the presence of failures


				+we use timeouts. However, we rely on times for liveness not for correctness. So,


				+if timeouts stop working (clocks malfunction for example) the messaging system may


				+hang, but it will not violate its guarantees.</para>


				+


				+<para>When describing the ZooKeeper messaging protocol we will talk of packets,


				+proposals, and messages:</para>


				+<variablelist>


				+<varlistentry><term><emphasis >Packet</emphasis></term>


				+<listitem><para>a sequence of bytes sent through a FIFO channel</para></listitem></varlistentry><varlistentry>


				+


				+<term><emphasis >Proposal</emphasis></term>


				+<listitem><para>a unit of agreement. Proposals are agreed upon by exchanging packets


				+with a quorum of ZooKeeper servers. Most proposals contain messages, however the


				+NEW_LEADER proposal is an example of a proposal that does not correspond to a message.</para></listitem>


				+</varlistentry><varlistentry>


				+


				+<term><emphasis >Message</emphasis></term>


				+<listitem><para>a sequence of bytes to be atomically broadcast to all ZooKeeper


				+servers. A message put into a proposal and agreed upon before it is delivered.</para></listitem>


				+</varlistentry>


				+


				+</variablelist>


				+


				+<para>


				+As stated above, ZooKeeper guarantees a total order of messages, and it also


				+guarantees a total order of proposals. ZooKeeper exposes the total ordering using


				+a ZooKeeper transaction id (<emphasis>zxid</emphasis>). All proposals will be stamped with a zxid when


				+it is proposed and exactly reflects the total ordering. Proposals are sent to all


				+ZooKeeper servers and committed when a quorum of them acknowledge the proposal.


				+If a proposal contains a message, the message will be delivered when the proposal


				+is committed. Acknowledgement means the server has recorded the proposal to persistent storage.


				+Our quorums have the requirement that any pair of quorum must have at least one server


				+in common. We ensure this by requiring that all quorums have size (<emphasis>n/2+1</emphasis>) where


				+n is the number of servers that make up a ZooKeeper service.


				+</para>


				+


				+<para>


				+The zxid has two parts: the epoch and a counter. In our implementation the zxid


				+is a 64-bit number. We use the high order 32-bits for the epoch and the low order


				+32-bits for the counter. Because it has two parts represent the zxid both as a


				+number and as a pair of integers, (<emphasis>epoch, count</emphasis>). The epoch number represents a


				+change in leadership. Each time a new leader comes into power it will have its


				+own epoch number. We have a simple algorithm to assign a unique zxid to a proposal:


				+the leader simply increments the zxid to obtain a unique zxid for each proposal.


				+<emphasis>Leadership activation will ensure that only one leader uses a given epoch, so our


				+simple algorithm guarantees that every proposal will have a unique id.</emphasis>


				+</para>


				+


				+<para>


				+ZooKeeper messaging consists of two phases:</para>


				+


				+<variablelist>


				+<varlistentry><term><emphasis >Leader activation</emphasis></term>


				+<listitem><para>In this phase a leader establishes the correct state of the system


				+and gets ready to start making proposals.</para></listitem>


				+</varlistentry>


				+


				+<varlistentry><term><emphasis >Active messaging</emphasis></term>


				+<listitem><para>In this phase a leader accepts messages to propose and coordinates message delivery.</para></listitem>


				+</varlistentry>


				+</variablelist>


				+


				+<para>


				+ZooKeeper is a holistic protocol. We do not focus on individual proposals, rather


				+look at the stream of proposals as a whole. Our strict ordering allows us to do this


				+efficiently and greatly simplifies our protocol. Leadership activation embodies


				+this holistic concept. A leader becomes active only when a quorum of followers


				+(The leader counts as a follower as well. You can always vote for yourself ) has synced


				+up with the leader, they have the same state. This state consists of all of the


				+proposals that the leader believes have been committed and the proposal to follow


				+the leader, the NEW_LEADER proposal. (Hopefully you are thinking to


				+yourself, <emphasis>Does the set of proposals that the leader believes has been committed


				+included all the proposals that really have been committed?</emphasis> The answer is <emphasis>yes</emphasis>.


				+Below, we make clear why.)


				+</para>


				+


				+</section>


				+


				+<section id="sc_leaderElection">


				+


				+<title>Leader Activation</title>


				+<para>


				+Leader activation includes leader election. We currently have two leader election


				+algorithms in ZooKeeper: LeaderElection and FastLeaderElection (AuthFastLeaderElection


				+is a variant of FastLeaderElection). ZooKeeper messaging doesn't care about the


				+exact method of electing a leader has long as the following holds:


				+</para>


				+


				+<itemizedlist>


				+


				+<listitem><para>The leader has seen the highest zxid of all the followers.</para></listitem>


				+<listitem><para>A quorum of servers have committed to following the leader.</para></listitem>


				+


				+</itemizedlist>


				+


				+<para>


				+Of these two requirements only the first, the highest zxid amoung the followers


				+needs to hold for correct operation. The second requirement, a quorum of followers,


				+just needs to hold with high probability. We are going to recheck the second requirement,


				+so if a failure happens during or after the leader election and quorum is lost,


				+we will recover by abandoning leader activation and running another election.


				+</para>


				+


				+<para>


				+After leader election a single server will be designated as a leader and start


				+waiting for followers to connect. The rest of the servers will try to connect to


				+the leader. The leader will sync up with followers by sending any proposals they


				+are missing, or if a follower is missing too many proposals, it will send a full


				+snapshot of the state to the follower.


				+</para>


				+


				+<para>


				+There is a corner cases that a follower arrives that has proposals, U, not seen


				+by a leader. Proposals are seen in order, so the proposals of U will have a zxids


				+higher than zxids seen by the leader. The follower must have arrived after the


				+leader election, otherwise the follower would have been elected leader given that


				+it has seen a higher zxid. Since committed proposals must be seen by a quorum of


				+servers, and a quorum of servers that elected the leader did not see U, the proposals


				+of you have not been committed, so they can be discarded. When the follower connects


				+to the leader, the leader will tell the follower to discard U.


				+</para>


				+


				+<para>


				+A new leader establishes a zxid to start using for new proposals by getting the


				+epoch, e, of the highest zxid it has seen and setting the next zxid to use to be


				+(e+1, 0), fter the leader syncs with a follower, it will propose a NEW_LEADER


				+proposal. Once the NEW_LEADER proposal has been committed, the leader will activate


				+and start receiving and issuing proposals.


				+</para>


				+


				+<para>


				+It all sounds complicated but here are the basic rules of operation during leader


				+activation:


				+</para>


				+


				+<itemizedlist>


				+<listitem><para>A follower will ACK the NEW_LEADER proposal after it has synced with the leader.</para></listitem>


				+<listitem><para>A follower will only ACK a NEW_LEADER proposal with a given zxid from a single server.</para></listitem>


				+<listitem><para>A new leader will COMMIT the NEW_LEADER proposal when a quorum of followers have ACKed it.</para></listitem>


				+<listitem><para>A follower will commit any state it received from the leader when the NEW_LEADER proposal is COMMIT.</para></listitem>


				+<listitem><para>A new leader will not accept new proposals until the NEW_LEADER proposal has been COMMITED.</para></listitem>


				+</itemizedlist>


				+


				+<para>


				+If leader election terminates erroneously, we don't have a problem since the


				+NEW_LEADER proposal will not be committed since the leader will not have quorum.


				+When this happens, the leader and any remaining followers will timeout and go back


				+to leader election.


				+</para>


				+


				+</section>


				+


				+<section id="sc_activeMessaging">


				+<title>Active Messaging</title>


				+<para>


				+Leader Activation does all the heavy lifting. Once the leader is coronated he can


				+start blasting out proposals. As long as he remains the leader no other leader can


				+emerge since no other leader will be able to get a quorum of followers. If a new


				+leader does emerge,


				+it means that the leader has lost quorum, and the new leader will clean up any


				+mess left over during her leadership activation.


				+</para>


				+


				+<para>ZooKeeper messaging operates similar to a classic two-phase commit.</para>


				+


				+<mediaobject id="fg_2phaseCommit" >


				+  <imageobject>


				+    <imagedata fileref="images/2pc.png"/>


				+  </imageobject>


				+</mediaobject>


				+


				+<para>


				+All communication channels are FIFO, so everything is done in order. Specifically


				+the following operating constraints are observed:</para>


				+


				+<itemizedlist>


				+


				+<listitem><para>The leader sends proposals to all followers using


				+the same order. Moreover, this order follows the order in which requests have been


				+received. Because we use FIFO channels this means that followers also receive proposals in order.


				+</para></listitem>


				+


				+<listitem><para>Followers process messages in the order they are received. This


				+means that messages will be ACKed in order and the leader will receive ACKs from


				+followers in order, due to the FIFO channels. It also means that if message $m$


				+has been written to non-volatile storage, all messages that were proposed before


				+$m$ have been written to non-volatile storage.</para></listitem>


				+


				+<listitem><para>The leader will issue a COMMIT to all followers as soon as a


				+quorum of followers have ACKed a message. Since messages are ACKed in order,


				+COMMITs will be sent by the leader as received by the followers in order.</para></listitem>


				+


				+<listitem><para>COMMITs are processed in order. Followers deliver a proposals


				+message when that proposal is committed.</para></listitem>


				+


				+</itemizedlist>


				+


				+</section>


				+


				+<section id="sc_summary">


				+<title>Summary</title>


				+<para>So there you go. Why does it work? Specifically, why does is set of proposals


				+believed by a new leader always contain any proposal that has actually been committed?


				+First, all proposals have a unique zxid, so unlike other protocols, we never have


				+to worry about two different values being proposed for the same zxid; followers


				+(a leader is also a follower) see and record proposals in order; proposals are


				+committed in order; there is only one active leader at a time since followers only


				+follow a single leader at a time; a new leader has seen all committed proposals


				+from the previous epoch since it has seen the highest zxid from a quorum of servers;


				+any uncommited proposals from a previous epoch seen by a new leader will be committed


				+by that leader before it becomes active.</para></section>


				+


				+<section id="sc_comparisons"><title>Comparisons</title>


				+<para>


				+Isn't this just Multi-Paxos? No, Multi-Paxos requires some way of assuring that


				+there is only a single coordinator. We do not count on such assurances. Instead


				+we use the leader activation to recover from leadership change or old leaders


				+believing they are still active.


				+</para>


				+


				+<para>


				+Isn't this just Paxos? Your active messaging phase looks just like phase 2 of Paxos?


				+Actually, to us active messaging looks just like 2 phase commit without the need to


				+handle aborts. Active messaging is different from both in the sense that it has


				+cross proposal ordering requirements. If we do not maintain strict FIFO ordering of


				+all packets, it all falls apart. Also, our leader activation phase is different from


				+both of them. In particular, our use of epochs allows us to skip blocks of uncommitted


				+proposals and to not worry about duplicate proposals for a given zxid.


				+</para>


				+


				+</section>


				+


				+</section>


				+


				+


				+<section id="sc_logging">


				+


				+<title>Logging</title>


				+


				+<para>


				+ZooKeeper uses


				+<ulink url="http://logging.apache.org/log4j">log4j</ulink>


				+version 1.2 as its logging infrastructure. For information on configuring log4j for


				+ZooKeeper, see the <ulink url="zookeeperAdmin.html#sc_logging">Logging</ulink> section


				+of the <ulink url="zookeeperAdmin.html">ZooKeeper Administrator's Guide.</ulink>


				+</para>


				+


				+<section id="sc_developerGuidelines"><title>Developer Guidelines</title>


				+


				+<para>Please follow these guidelines when submitting code. Patch reviewers will look for the following:</para>


				+<section id="sc_rightLevel"><title>Logging at the Right Level</title>


				+<para>


				+There are <ulink url="http://logging.apache.org/log4j/1.2/apidocs/org/apache/log4j/Level.html#FATAL">6 levels of logging in log4j</ulink>.


				+It's important to pick the right one. In order of higher to lower severity:</para>


				+<orderedlist>


				+   <listitem><para> FATAL level designates very severe error events that will presumably lead the application to abort</para></listitem>


				+   <listitem><para>ERROR level designates error events that might still allow the application to continue running.</para></listitem>


				+   <listitem><para>WARN level designates potentially harmful situations.</para></listitem>


				+   <listitem><para>INFO level designates informational messages that highlight the progress of the application at coarse-grained level.</para></listitem>


				+   <listitem><para>EBUG Level designates fine-grained informational events that are most useful to debug an application.</para></listitem>


				+   <listitem><para>TRACE Level designates finer-grained informational events than the DEBUG.</para></listitem>


				+</orderedlist>


				+


				+<para>


				+ZooKeeper is typically run in production such that log messages of INFO level


				+severity and higher (more severe) are output to the log.</para>


				+


				+


				+</section>


				+


				+<section id="sc_log4jIdioms"><title>Use of Standard log4j Idioms</title>


				+


				+<para><emphasis>Static Message Logging</emphasis></para>


				+<programlisting>


				+LOG.debug("process completed successfully!");


				+</programlisting>


				+


				+<para>However when creating a message from a number of components (string


				+concatenation), the log call should be wrapped with a "isXEnabled()" call. this


				+eliminates the string concatenation overhead when debug level logging is not enabled.


				+</para>


				+


				+<programlisting>


				+if (LOG.isDebugEnabled()) {


				+    LOG.debug("got " + count + " messages in " + time + " minutes");


				+}


				+</programlisting>


				+


				+<para><emphasis>Naming</emphasis></para>


				+


				+<para>


				+Loggers should be named after the class in which they are used. (See the


				+<ulink url="http://logging.apache.org/log4j/1.2/faq.html#2.4">log4j faq</ulink>


				+for reasons why this is a good idea.)


				+</para>


				+


				+<programlisting>


				+public class Foo {


				+    private static final Logger LOG = Logger.getLogger(Foo.class);


				+    ....


				+    public Foo() {


				+       LOG.info("constructing Foo");


				+</programlisting>


				+


				+<para><emphasis>Exception handling</emphasis></para>


				+<programlisting>


				+try {


				+  // code


				+} catch (XYZException e) {


				+  // do this


				+  LOG.error("Something bad happened", e);


				+  // don't do this (generally)


				+  // LOG.error(e);


				+  // why? because "don't do" case hides the stack trace


				+


				+  // continue process here as you need... recover or (re)throw


				+}


				+</programlisting>


				+</section>


				+</section>


				+


				+</section>


				+


				+</article>

--- a/src/docs/src/documentation/content/xdocs/zookeeperStarted.xml
+++ b/src/docs/src/documentation/content/xdocs/zookeeperStarted.xml
@@ -71,19 +71,20 @@

				       </note>





				       <para>Once you have downloaded the ZooKeeper source, cd to the root of


				-      your ZooKeeper source, and run "ant jar". For example:<computeroutput>$ cd ~/dev/zookeeper


				-


				-$ ~/dev/zookeeper/: ant jar</computeroutput></para>


				+      your ZooKeeper source, and run "ant jar". For example:</para>


				+<programlisting>


				+$ cd ~/dev/zookeeper


				+$ ~/dev/zookeeper/: ant jar


				+</programlisting>





				       <para>This should generate a JAR file called zookeeper.jar. To start


				-      Zookeeper, compile and run zookeeper.jar. <emphasis>[tbd, some more


				-      instruction here. Perhaps a command line? Are these two steps or


				-      one?]</emphasis></para>


				+      Zookeeper, compile and run zookeeper.jar.</para>





				       <para>To start ZooKeeper you need a configuration file. Here is a sample


				       file:</para>





				-      <programlisting>tickTime=2000


				+<programlisting>


				+tickTime=2000


				 dataDir=/var/zookeeper/


				 clientPort=2181


				 </programlisting>

@@ -127,7 +128,7 @@ clientPort=2181

				       <para>Now that you created the configuration file, you can start


				       ZooKeeper:</para>





				-      <para><computeroutput>java -cp zookeeper-dev.jar:java/lib/log4j-1.2.15.jar:conf org.apache.zookeeper.server.quorum.QuorumPeerMain zoo.cfg</computeroutput></para>


				+      <programlisting>java -cp zookeeper-dev.jar:java/lib/log4j-1.2.15.jar:conf org.apache.zookeeper.server.quorum.QuorumPeerMain zoo.cfg</programlisting>





				       <para>ZooKeeper logs messages using log4j -- more detail available in


				       the <ulink url="zookeeperProgrammers.html#Logging">Logging</ulink>

@@ -163,7 +164,7 @@ clientPort=2181

				         <listitem>


				           <para><emphasis role="bold">C</emphasis>: compile cli_mt


				           (multi-threaded) or cli_st (single-threaded) by running


				-          <command>_make cli_mt_</command> or <command>_make cli_st_</command>


				+          <command>make cli_mt</command> or <command>make cli_st</command>


				           in the c subdirectory in the ZooKeeper sources.</para>





				           <para>You can run the program using <emphasis>LD_LIBRARY_PATH=.

@@ -197,13 +198,16 @@ clientPort=2181

				       file. The file is similar to the one used in standalone mode, but with a


				       few differences. Here is an example:</para>





				-      <para><computeroutput>tickTime=2000


				+<programlisting>


				+tickTime=2000


				 dataDir=/var/zookeeper/


				 clientPort=2181


				 initLimit=5


				 syncLimit=2


				-server.1=zoo1:2888 server.2=zoo2:2888


				-server.3=zoo3:2888 </computeroutput></para>


				+server.1=zoo1:2888


				+server.2=zoo2:2888


				+server.3=zoo3:2888


				+</programlisting>





				       <para>The new entry, <emphasis role="bold">initLimit</emphasis> is


				       timeouts ZooKeeper uses to limit the length of time the Zookeeper

--- a/src/docs/src/documentation/content/xdocs/zookeeperTutorial.xml
+++ b/src/docs/src/documentation/content/xdocs/zookeeperTutorial.xml
@@ -0,0 +1,674 @@

				+<?xml version="1.0" encoding="UTF-8"?>


				+<!--


				+  Copyright 2002-2004 The Apache Software Foundation


				+


				+  Licensed under the Apache License, Version 2.0 (the "License");


				+  you may not use this file except in compliance with the License.


				+  You may obtain a copy of the License at


				+


				+      http://www.apache.org/licenses/LICENSE-2.0


				+


				+  Unless required by applicable law or agreed to in writing, software


				+  distributed under the License is distributed on an "AS IS" BASIS,


				+  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.


				+  See the License for the specific language governing permissions and


				+  limitations under the License.


				+-->


				+


				+<!DOCTYPE article PUBLIC "-//OASIS//DTD Simplified DocBook XML V1.0//EN"


				+"http://www.oasis-open.org/docbook/xml/simple/1.0/sdocbook.dtd">


				+<article id="ar_Tutorial">


				+  <title>Programming with ZooKeeper - A basic tutorial</title>


				+


				+  <articleinfo>


				+    <legalnotice>


				+      <para>Licensed under the Apache License, Version 2.0 (the "License");


				+      you may not use this file except in compliance with the License. You may


				+      obtain a copy of the License at <ulink


				+      url="http://www.apache.org/licenses/LICENSE-2.0">http://www.apache.org/licenses/LICENSE-2.0</ulink>.</para>


				+


				+      <para>Unless required by applicable law or agreed to in writing,


				+      software distributed under the License is distributed on an "AS IS"


				+      BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or


				+      implied. See the License for the specific language governing permissions


				+      and limitations under the License.</para>


				+    </legalnotice>


				+


				+    <abstract>


				+      <para>This article contains sample Java code for simple implementations of barrier


				+      and consumers queues..</para>


				+


				+    </abstract>


				+  </articleinfo>


				+


				+  <section id="ch_Introduction">


				+    <title>Introduction</title>


				+


				+    <para>In this tutorial, we show simple implementations of barriers and


				+    producer-consumer queues using ZooKeeper. We call the respective classes Barrier and Queue.


				+    These examples assume that you have at least one ZooKeeper server running.</para>


				+


				+    <para>Both primitives use the following common excerpt of code:</para>


				+


				+    <programlisting>


				+static ZooKeeper zk = null;


				+static Integer mutex;


				+


				+String root;


				+


				+SyncPrimitive(String address) {


				+	if(zk == null){


				+	    try {


				+		System.out.println("Starting ZK:");


				+		zk = new ZooKeeper(address, 3000, this);


				+		mutex = new Integer(-1);


				+		System.out.println("Finished starting ZK: " + zk);


				+	    } catch (KeeperException e) {


				+		System.out.println("Keeper exception when starting new session: "


				+			+ e.toString());


				+		zk = null;


				+	    } catch (IOException e) {


				+		System.out.println(e.toString());


				+		zk = null;


				+	    }


				+	}


				+}


				+


				+synchronized public void process(WatcherEvent event) {


				+	synchronized (mutex) {


				+	    mutex.notify();


				+	}


				+}


				+


				+</programlisting>


				+


				+<para>Both classes extend SyncPrimitive. In this way, we execute steps that are


				+common to all primitives in the constructor of SyncPrimitive. To keep the examples


				+simple, we create a ZooKeeper object the first time we instantiate either a barrier


				+object or a queue object, and we declare a static variable that is a reference


				+to this object. The subsequent instances of Barrier and Queue check whether a


				+ZooKeeper object exists. Alternatively, we could have the application creating a


				+ZooKeeper object and passing it to the constructor of Barrier and Queue.</para>


				+<para>


				+We use the process() method to process notifications triggered due to watches.


				+In the following discussion, we present code that sets watches. A watch is internal


				+structure that enables ZooKeeper to notify a client of a change to a node. For example,


				+if a client is waiting for other clients to leave a barrier, then it can set a watch and


				+wait for modifications to a particular node, which can indicate that it is the end of the wait.


				+This point becomes clear once we go over the examples.


				+</para>


				+</section>


				+


				+ <section id="sc_barriers"><title>Barriers</title>


				+


				+ <para>


				+ A barrier is a primitive that enables a group of processes to synchronize the


				+ beginning and the end of a computation. The general idea of this implementation


				+ is to have a barrier node that serves the purpose of being a parent for individual


				+ process nodes. Suppose that we call the barrier node "/b1". Each process "p" then


				+ creates a node "/b1/p". Once enough processes have created their corresponding


				+ nodes, joined processes can start the computation.


				+ </para>


				+


				+ <para>In this example, each process instantiates a Barrier object, and its constructor takes as parameters:</para>


				+


				+ <itemizedlist><listitem><para>the address of a ZooKeeper server (e.g., "zoo1.foo.com:2181")</para></listitem>


				+<listitem><para>the path of the barrier node on ZooKeeper (e.g., "/b1")</para></listitem>


				+<listitem><para>the size of the group of processes</para></listitem>


				+</itemizedlist>


				+


				+<para>The constructor of Barrier passes the address of the Zookeeper server to the


				+constructor of the parent class. The parent class creates a ZooKeeper instance if


				+one does not exist. The constructor of Barrier then creates a


				+barrier node on ZooKeeper, which is the parent node of all process nodes, and


				+we call root (<emphasis role="bold">Note:</emphasis> This is not the ZooKeeper root "/").</para>


				+


				+<programlisting>


				+ /**


				+ * Barrier constructor


				+ *


				+ * @param address


				+ * @param name


				+ * @param size


				+ */


				+Barrier(String address, String name, int size) {


				+    super(address);


				+    this.root = name;


				+    this.size = size;


				+


				+    // Create barrier node


				+    if (zk != null) {


				+	try {


				+	    Stat s = zk.exists(root, false);


				+	    if (s == null) {


				+		zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+	    }


				+	} catch (KeeperException e) {


				+	    System.out.println("Keeper exception when instantiating queue: " + e.toString());


				+	} catch (InterruptedException e) {


				+	    System.out.println("Interrupted exception");


				+	}


				+    }


				+


				+    // My node name


				+    try {


				+	name = new String(InetAddress.getLocalHost().getCanonicalHostName().toString());


				+    } catch (UnknownHostException e) {


				+	System.out.println(e.toString());


				+    }


				+


				+}


				+</programlisting>


				+<para>


				+To enter the barrier, a process calls enter(). The process creates a node under


				+the root to represent it, using its host name to form the node name. It then wait


				+until enough processes have entered the barrier. A process does it by checking


				+the number of children the root node has with "getChildren()", and waiting for


				+notifications in the case it does not have enough. To receive a notification when


				+there is a change to the root node, a process has to set a watch, and does it


				+through the call to "getChildren()". In the code, we have that "getChildren()"


				+has two parameters. The first one states the node to read from, and the second is


				+a boolean flag that enables the process to set a watch. In the code the flag is true.


				+</para>


				+


				+<programlisting>


				+ /**


				+ * Join barrier


				+ *


				+ * @return


				+ * @throws KeeperException


				+ * @throws InterruptedException


				+ */


				+


				+boolean enter() throws KeeperException, InterruptedException{


				+    zk.create(root + "/" + name, new byte[0], Ids.OPEN_ACL_UNSAFE,


				+	    CreateFlags.EPHEMERAL);


				+    while (true) {


				+	synchronized (mutex) {


				+	    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+


				+	    if (list.size() &lt; size) {


				+		mutex.wait();


				+	    } else {


				+		return true;


				+	    }


				+	}


				+    }


				+}


				+</programlisting>


				+<para>


				+Note that enter() throws both KeeperException and InterruptedException, so it is


				+the reponsability of the application to catch and handle such exceptions.</para>


				+


				+<para>


				+Once the computation is finished, a process calls leave() to leave the barrier.


				+First it deletes its corresponding node, and then it gets the children of the root


				+node. If there is at least one child, then it waits for a notification (obs: note


				+that the second parameter of the call to getChildren() is true, meaning that


				+ZooKeeper has to set a watch on the the root node). Upon reception of a notification,


				+it checks once more whether the root node has any child.</para>


				+


				+<programlisting>


				+ /**


				+ * Wait until all reach barrier


				+ *


				+ * @return


				+ * @throws KeeperException


				+ * @throws InterruptedException


				+ */


				+


				+boolean leave() throws KeeperException, InterruptedException{


				+    zk.delete(root + "/" + name, 0);


				+    while (true) {


				+	synchronized (mutex) {


				+	    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+		if (list.size() &gt; 0) {


				+		    mutex.wait();


				+		} else {


				+		    return true;


				+		}


				+	    }


				+	}


				+}


				+</programlisting>


				+</section>


				+<section id="sc_producerConsumerQueues"><title>Producer-Consumer Queues</title>


				+<para>


				+A producer-consumer queue is a distributed data estructure thata group of processes


				+use to generate and consume items. Producer processes create new elements and add


				+them to the queue. Consumer processes remove elements from the list, and process them.


				+In this implementation, the elements are simple integers. The queue is represented


				+by a root node, and to add an element to the queue, a producer process creates a new node,


				+a child of the root node.


				+</para>


				+


				+<para>


				+The following excerpt of code corresponds to the constructor of the object. As


				+with Barrier objects, it first calls the constructor of the parent class, SyncPrimitive,


				+that creates a ZooKeeper object if one doesn't exist. It then verifies if the root


				+node of the queue exists, and creates if it doesn't.


				+</para>


				+<programlisting>


				+/**


				+ * Constructor of producer-consumer queue


				+ *


				+ * @param address


				+ * @param name


				+ */


				+Queue(String address, String name) {


				+    super(address);


				+    this.root = name;


				+    // Create ZK node name


				+    if (zk != null) {


				+	try {


				+	    Stat s = zk.exists(root, false);


				+	    if (s == null) {


				+		zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+	    }


				+	} catch (KeeperException e) {


				+	    System.out


				+		    .println("Keeper exception when instantiating queue: "


				+			    + e.toString());


				+	} catch (InterruptedException e) {


				+	    System.out.println("Interrupted exception");


				+	}


				+    }


				+}


				+ </programlisting>


				+


				+<para>


				+A producer process calls "produce()" to add an element to the queue, and passes


				+an integer as an argument. To add an element to the queue, the method creates a


				+new node using "create()", and uses the SEQUENCE flag to instruct ZooKeeper to


				+append the value of the sequencer counter associated to the root node. In this way,


				+we impose a total order on the elements of the queue, thus guaranteeing that the


				+oldest element of the queue is the next one consumed.


				+</para>


				+


				+<programlisting>


				+/**


				+ * Add element to the queue.


				+ *


				+ * @param i


				+ * @return


				+ */


				+


				+boolean produce(int i) throws KeeperException, InterruptedException{


				+    ByteBuffer b = ByteBuffer.allocate(4);


				+    byte[] value;


				+


				+    // Add child with value i


				+    b.putInt(i);


				+    value = b.array();


				+    zk.create(root + "/element", value, Ids.OPEN_ACL_UNSAFE,


				+		CreateFlags.SEQUENCE);


				+


				+    return true;


				+}


				+</programlisting>


				+<para>


				+To consume an element, a consumer process obtains the children of the root node,


				+reads the node with smallest counter value, and returns the element. Note that


				+if there is a conflict, then one of the two contending processes won't be able to


				+delete the node and the delete operation will throw an exception.</para>


				+


				+<para>


				+A call to getChildren() returns the list of children in lexicographic order.


				+As lexicographic order does not necessary follow the numerical order of the counter


				+values, we need to decide which element is the smallest. To decide which one has


				+the smallest counter value, we traverse the list, and remove the prefix "element"


				+from each one.</para>


				+


				+<programlisting>


				+/**


				+ * Remove first element from the queue.


				+ *


				+ * @return


				+ * @throws KeeperException


				+ * @throws InterruptedException


				+ */


				+int consume() throws KeeperException, InterruptedException{


				+    int retvalue = -1;


				+    Stat stat = null;


				+


				+    // Get the first element available


				+    while (true) {


				+	synchronized (mutex) {


				+	    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+	    if (list.size() == 0) {


				+		System.out.println("Going to wait");


				+		mutex.wait();


				+	    } else {


				+		Integer min = new Integer(list.get(0).substring(7));


				+		for(String s : list){


				+		    Integer tempValue = new Integer(s.substring(7));


				+		    if(tempValue &gt; min) min = tempValue;


				+		}


				+		System.out.println("Temporary value: " + root + "/element" + min);


				+		byte[] b = zk.getData(root + "/element" + min, false, stat);


				+		zk.delete(root + "/element" + min, 0);


				+		ByteBuffer buffer = ByteBuffer.wrap(b);


				+		retvalue = buffer.getInt();


				+


				+		return retvalue;


				+	    }


				+	}


				+    }


				+}


				+</programlisting>


				+


				+</section>


				+<section id="sc_sourceListing"><title>Complete Source Listing</title>


				+<example id="eg_SyncPrimitive_java">


				+<title>SyncPrimitive.Java</title>


				+<programlisting>


				+package com.yahoo.SyncPrimitive;


				+


				+import java.io.IOException;


				+import java.net.InetAddress;


				+import java.net.UnknownHostException;


				+import java.nio.ByteBuffer;


				+import java.lang.InterruptedException;


				+import java.util.ArrayList;


				+import java.util.Random;


				+


				+import com.yahoo.zookeeper.Watcher;


				+import com.yahoo.zookeeper.data.Stat;


				+import com.yahoo.zookeeper.proto.WatcherEvent;


				+import com.yahoo.zookeeper.KeeperException;


				+import com.yahoo.zookeeper.ZooDefs.Ids;


				+import com.yahoo.zookeeper.ZooDefs.CreateFlags;


				+import com.yahoo.zookeeper.ZooKeeper;


				+


				+public class SyncPrimitive implements Watcher {


				+


				+    static ZooKeeper zk = null;


				+    static Integer mutex;


				+


				+    String root;


				+


				+    SyncPrimitive(String address) {


				+        if(zk == null){


				+            try {


				+                System.out.println("Starting ZK:");


				+                zk = new ZooKeeper(address, 3000, this);


				+                mutex = new Integer(-1);


				+                System.out.println("Finished starting ZK: " + zk);


				+            } catch (KeeperException e) {


				+                System.out.println("Keeper exception when starting new session: "


				+                        + e.toString());


				+                zk = null;


				+            } catch (IOException e) {


				+                System.out.println(e.toString());


				+                zk = null;


				+            }


				+        }


				+        //else mutex = new Integer(-1);


				+    }


				+


				+    synchronized public void process(WatcherEvent event) {


				+        synchronized (mutex) {


				+            //System.out.println("Process: " + event.getType());


				+            mutex.notify();


				+        }


				+    }


				+


				+    /**


				+     * Barrier


				+     */


				+    static public class Barrier extends SyncPrimitive {


				+        int size;


				+        String name;


				+


				+        /**


				+         * Barrier constructor


				+         *


				+         * @param address


				+         * @param name


				+         * @param size


				+         */


				+        Barrier(String address, String name, int size) {


				+            super(address);


				+            this.root = name;


				+            this.size = size;


				+


				+            // Create barrier node


				+            if (zk != null) {


				+                try {


				+                    Stat s = zk.exists(root, false);


				+                    if (s == null) {


				+                        zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+                    }


				+                } catch (KeeperException e) {


				+                    System.out


				+                            .println("Keeper exception when instantiating queue: "


				+                                    + e.toString());


				+                } catch (InterruptedException e) {


				+                    System.out.println("Interrupted exception");


				+                }


				+            }


				+


				+            // My node name


				+            try {


				+                name = new String(InetAddress.getLocalHost().getCanonicalHostName().toString());


				+            } catch (UnknownHostException e) {


				+                System.out.println(e.toString());


				+            }


				+


				+        }


				+


				+        /**


				+         * Join barrier


				+         *


				+         * @return


				+         * @throws KeeperException


				+         * @throws InterruptedException


				+         */


				+


				+        boolean enter() throws KeeperException, InterruptedException{


				+            zk.create(root + "/" + name, new byte[0], Ids.OPEN_ACL_UNSAFE,


				+                    CreateFlags.EPHEMERAL);


				+            while (true) {


				+                synchronized (mutex) {


				+                    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+


				+                    if (list.size() &lt; size) {


				+                        mutex.wait();


				+                    } else {


				+                        return true;


				+                    }


				+                }


				+            }


				+        }


				+


				+        /**


				+         * Wait until all reach barrier


				+         *


				+         * @return


				+         * @throws KeeperException


				+         * @throws InterruptedException


				+         */


				+


				+        boolean leave() throws KeeperException, InterruptedException{


				+            zk.delete(root + "/" + name, 0);


				+            while (true) {


				+                synchronized (mutex) {


				+                    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+                        if (list.size() > 0) {


				+                            mutex.wait();


				+                        } else {


				+                            return true;


				+                        }


				+                    }


				+                }


				+        }


				+    }


				+


				+    /**


				+     * Producer-Consumer queue


				+     */


				+    static public class Queue extends SyncPrimitive {


				+


				+        /**


				+         * Constructor of producer-consumer queue


				+         *


				+         * @param address


				+         * @param name


				+         */


				+        Queue(String address, String name) {


				+            super(address);


				+            this.root = name;


				+            // Create ZK node name


				+            if (zk != null) {


				+                try {


				+                    Stat s = zk.exists(root, false);


				+                    if (s == null) {


				+                        zk.create(root, new byte[0], Ids.OPEN_ACL_UNSAFE, 0);


				+                    }


				+                } catch (KeeperException e) {


				+                    System.out


				+                            .println("Keeper exception when instantiating queue: "


				+                                    + e.toString());


				+                } catch (InterruptedException e) {


				+                    System.out.println("Interrupted exception");


				+                }


				+            }


				+        }


				+


				+        /**


				+         * Add element to the queue.


				+         *


				+         * @param i


				+         * @return


				+         */


				+


				+        boolean produce(int i) throws KeeperException, InterruptedException{


				+            ByteBuffer b = ByteBuffer.allocate(4);


				+            byte[] value;


				+


				+            // Add child with value i


				+            b.putInt(i);


				+            value = b.array();


				+            zk.create(root + "/element", value, Ids.OPEN_ACL_UNSAFE,


				+                        CreateFlags.SEQUENCE);


				+


				+            return true;


				+        }


				+


				+


				+        /**


				+         * Remove first element from the queue.


				+         *


				+         * @return


				+         * @throws KeeperException


				+         * @throws InterruptedException


				+         */


				+        int consume() throws KeeperException, InterruptedException{


				+            int retvalue = -1;


				+            Stat stat = null;


				+


				+            // Get the first element available


				+            while (true) {


				+                synchronized (mutex) {


				+                    ArrayList&lt;String&gt; list = zk.getChildren(root, true);


				+                    if (list.size() == 0) {


				+                        System.out.println("Going to wait");


				+                        mutex.wait();


				+                    } else {


				+                        Integer min = new Integer(list.get(0).substring(7));


				+                        for(String s : list){


				+                            Integer tempValue = new Integer(s.substring(7));


				+                            //System.out.println("Temporary value: " + tempValue);


				+                            if(tempValue &lt; min) min = tempValue;


				+                        }


				+                        System.out.println("Temporary value: " + root + "/element" + min);


				+                        byte[] b = zk.getData(root + "/element" + min,


				+                                    false, stat);


				+                        zk.delete(root + "/element" + min, 0);


				+                        ByteBuffer buffer = ByteBuffer.wrap(b);


				+                        retvalue = buffer.getInt();


				+


				+                        return retvalue;


				+                    }


				+                }


				+            }


				+        }


				+    }


				+


				+    public static void main(String args[]) {


				+        if (args[0].equals("qTest"))


				+            queueTest(args);


				+        else


				+            barrierTest(args);


				+


				+    }


				+


				+    public static void queueTest(String args[]) {


				+        Queue q = new Queue(args[1], "/app1");


				+


				+        System.out.println("Input: " + args[1]);


				+        int i;


				+        Integer max = new Integer(args[2]);


				+


				+        if (args[3].equals("p")) {


				+            System.out.println("Producer");


				+            for (i = 0; i &lt; max; i++)


				+                try{


				+                    q.produce(10 + i);


				+                } catch (KeeperException e){


				+


				+                } catch (InterruptedException e){


				+


				+                }


				+        } else {


				+            System.out.println("Consumer");


				+


				+            for (i = 0; i &lt; max; i++) {


				+                try{


				+                    int r = q.consume();


				+                    System.out.println("Item: " + r);


				+                } catch (KeeperException e){


				+                    i--;


				+                } catch (InterruptedException e){


				+


				+                }


				+            }


				+        }


				+    }


				+


				+    public static void barrierTest(String args[]) {


				+        Barrier b = new Barrier(args[1], "/b1", new Integer(args[2]));


				+        try{


				+            boolean flag = b.enter();


				+            System.out.println("Entered barrier: " + args[2]);


				+            if(!flag) System.out.println("Error when entering the barrier");


				+        } catch (KeeperException e){


				+


				+        } catch (InterruptedException e){


				+


				+        }


				+


				+        // Generate random integer


				+        Random rand = new Random();


				+        int r = rand.nextInt(100);


				+        // Loop for rand iterations


				+        for (int i = 0; i &lt; r; i++) {


				+            try {


				+                Thread.sleep(100);


				+            } catch (InterruptedException e) {


				+


				+            }


				+        }


				+        try{


				+            b.leave();


				+        } catch (KeeperException e){


				+


				+        } catch (InterruptedException e){


				+


				+        }


				+        System.out.println("Left barrier");


				+    }


				+}</programlisting></example>


				+</section>


				+


				+</article>

--- a/src/docs/src/documentation/resources/images/2pc.png
+++ b/src/docs/src/documentation/resources/images/2pc.png
--- a/src/docs/src/documentation/skinconf.xml
+++ b/src/docs/src/documentation/skinconf.xml
@@ -142,10 +142,20 @@ which will be used to configure the chosen Forrest skin.

				       font-family: monospace;


				     }





				+    pre.code {


				+      margin-left: 0em;


				+      padding: 0.5em;


				+      background-color: #f0f0f0;


				+      font-family: monospace;


				+    }


				+


				+<!-- patricks


				     .code {


				       font-family: "Courier New", Courier, monospace;


				       font-size: 110%;


				     }


				+-->


				+


				   </extra-css>





				   <colors>
